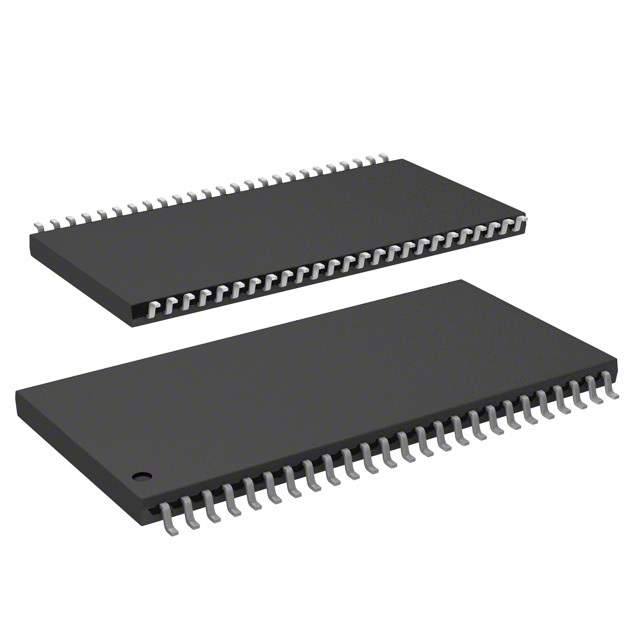

IS42S16100H-7TL-TR Real Image
Same model may have multiple batches, images only for reference.

IS42S16100H-7TL-TR

Part No IS42S16100H-7TL-TR
Manufacturer ISSI, Integrated Silicon Solution Inc
Catalog RAM
Description IC DRAM 16MBIT PAR 50TSOP II  /  SDRAM Memory IC 16Mb (1M x 16) Parallel 143 MHz 5.5 ns 50-TSOP II
Datasheet
IS42S16100H-7TL-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr ISSI, Integrated Silicon Solution Inc
Package Tape & Reel (TR)
Memory Type Volatile
Memory Format DRAM
Technology SDRAM
Memory Size 16Mb (1M x 16)
Memory Interface Parallel
Clock Frequency 143 MHz
Access Time 5.5 ns
Voltage - Supply 3V ~ 3.6V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting SMD (SMT)
Package / Case 50-TSOP (0.400", 10.16mm Width)
Supplier Device Package 50-TSOP II
Base Product Number IS42S16100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B2A
HTSUS 8542.32.0002
Standard Package 1,000
Win Source Part Number 987439-IS42S16100H-7TL-TR
Ultra Librarian 3D Model Ultra Librarian IS42S16100H-7TL-TR CAD Model

Description

The IS42S16100H-7TL-TR is a 16Mb (1M x 16) SDRAM memory module that operates on a voltage supply of 3V to 3.6V.

  • Access Time: 5.5 ns
  • Clock Frequency: 143 MHz
  • Package: 50-TSOP (0.400", 10.16mm Width)
  • Device Package: 50-TSOP II
  • Memory Interface: Parallel
  • Technology: DRAM
  • ECCN: 3A991B2A
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8542.32.0002
  • Manufacturer: Integrated Silicon Solution Inc
