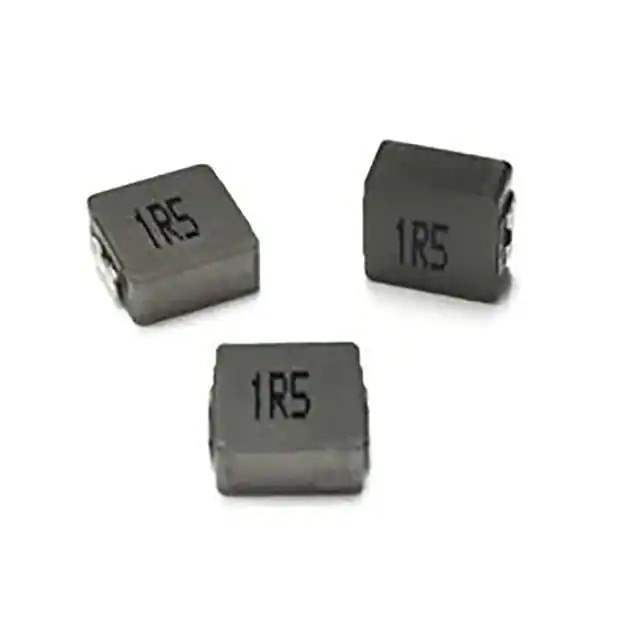

Same model may have multiple batches, images only for reference.

SM2511-R10MHF

Name: SM2511-R10MHF
Brand: ITG Electronics, Inc.
SKU: 895434
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SM2511-R10MHF
Manufacturer	ITG Electronics, Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100NH 32.5A 1.7MOHM SM
Datasheet	SM2511-R10MHF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	ITG Electronics, Inc.
Series	SM2511
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal
Inductance	100 nH
Tolerance	±20%
Current Rating (Amps)	32.5 A
Current - Saturation (Isat)	60A
Shielding	Shielded
DC Resistance (DCR)	1.7mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.263" L x 0.255" W (6.68mm x 6.47mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	895434-SM2511-R10MHF
Ultra Librarian 3D Model	Ultra Librarian SM2511-R10MHF CAD Model

Alternative Products

Description

The 895434-SM2511-R10MHF is a fixed inductor belonging to the Inductors, Coils, Chokes category, manufactured by ITG Electronics, Inc.

Series: SM2511
Type: Molded, Shielded
Package: Tape & Reel
Size: 0.263" L x 0.255" W (6.68mm x 6.47mm)
Seated Height: 0.118" (3.00mm)
Inductance: 100nH
Tolerance: ±20%
DC Resistance (DCR): 1.7mOhm (Max)
Current Rating: 32.5A
Operating Temperature: -55°C to 125°C
Win Source Part Number: 895434-SM2511-R10MHF
