Same model may have multiple batches, images only for reference.

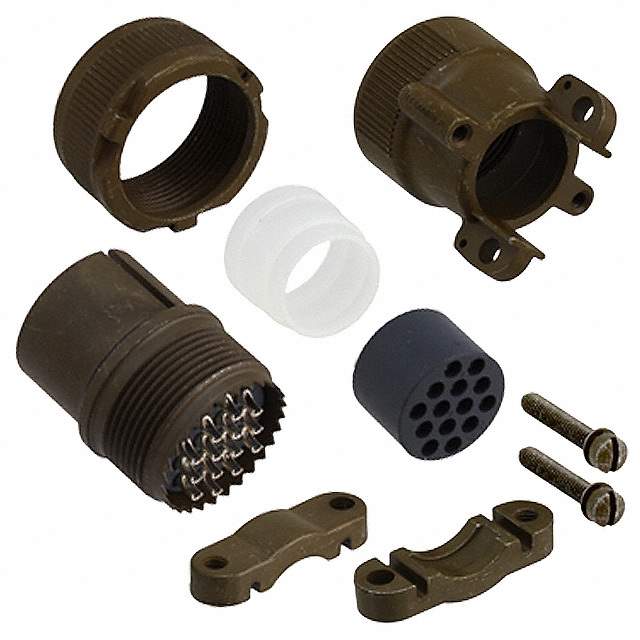

MS3106F20-27P Real Image
Same model may have multiple batches, images only for reference.

MS3106F20-27P

Part No MS3106F20-27P
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors
Description CONN PLUG 14POS STRAIGHT W/PINS / Conn Cylindrical Circular PIN 14 POS Solder Cup ST Cable Mount 14 Terminal 1 Port
Datasheet
MS3106F20-27P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Industrial Operations
Series Military, MIL-DTL-5015
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 14
Shell Size - Insert 20-27
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Ingress Protection Environment Resistant
Shell Material, Finish Aluminum Alloy, Olive Drab Cadmium Plated
Contact Finish Silver
Features Strain Relief
Voltage Rating DC 500VAC, 700VDC
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 770974-MS3106F20-27P
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name MS
Introduction Date January 27, 2005
ECCN EAR99
Country of Origin China, Germany, Mexico
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MS3106F20-27P CAD Model

Description

The Amphenol Industrial Operations 770974-MS3106F20-27P is a military, MIL-DTL-5015 series plug, male pins connector. It has a shell size-insert of 20-27, and it is made of aluminum alloy with an olive drab cadmium plated finish.

  • Shell Size-Insert: 20-27
  • Material: Aluminum Alloy, Olive Drab Cadmium Plated
  • Positions: 14
  • Operating Temperature: -55°C to 125°C
  • Strain Relief: Yes
  • Connector Type: Plug, Male Pins
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Contact Finish: Silver
  • Ingress Protection: Environment Resistant
  • Orientation: N (Normal)
  • Mounting Type: Free Hanging (In-Line)
  • Voltage Rating DC: 500VAC, 700VDC
  • Introduction Date: January 27, 2005
  • Supply and Demand Status: Limited
  • Quantity per Package: 1
