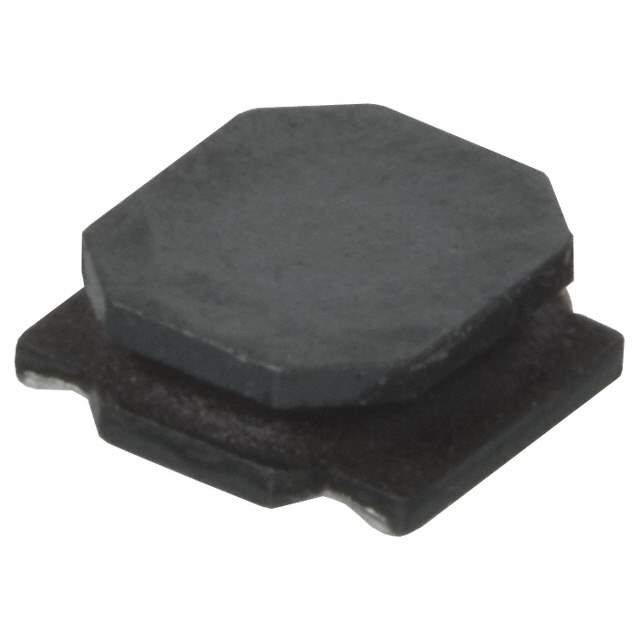

Same model may have multiple batches, images only for reference.

NR3012T100M

Name: NR3012T100M
Brand: Taiyo Yuden
SKU: 259203
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NR3012T100M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 10UH 630MA 348 MOHM
Datasheet	NR3012T100M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10μH
Tolerance	±20%
Current Rating	630mA
Current - Saturation	540mA
DC Resistance (DCR)	348 mOhm Max
Frequency - Self Resonant	32MHz
Temperature Range - Operating	-25°C to 120°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	025652-NR3012T100M
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	NR
Introduction Date	October 25, 2011
ECCN	EAR99
Estimated EOL Date	2026
Quantity per package	2k pcs
Ultra Librarian 3D Model	Ultra Librarian NR3012T100M CAD Model

Alternative Products

Description

The Taiyo Yuden NR3012T100M is a wirewound inductor manufactured by Taiyo Yuden.

Supply and demand status: Balanced
Design: Compact design and low DC resistance
Ideal for: high-frequency applications
Family: NR family
Alternative part for: DO3314-103MLB, ELL3GM100M, and DO3314-103MLD
