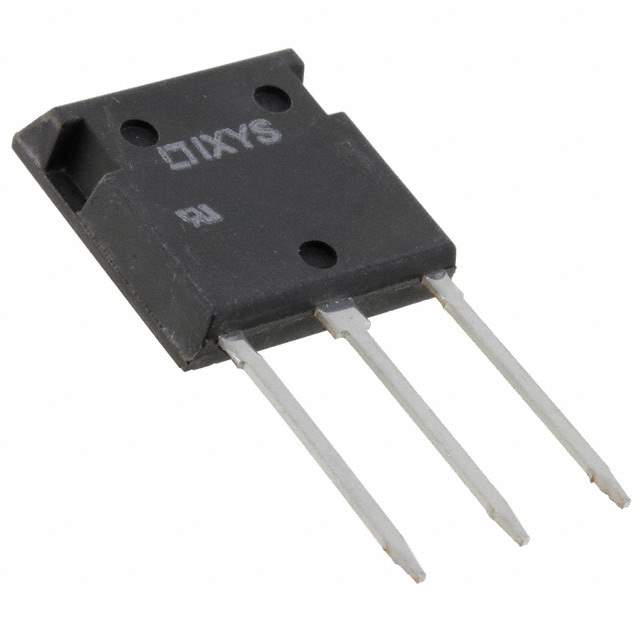

DSEE55-24N1F Real Image
Same model may have multiple batches, images only for reference.

DSEE55-24N1F

Part No DSEE55-24N1F
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 1200V 60A I4PAC  /  Diode Array 1 Pair Series Connection Standard 1200 V 60A Through Hole i4-Pac™-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS
Series HiPerFRED™
Package Tube
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 60A
Voltage - Forward (Vf) (Max) @ If 2.45 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 220 ns
Current - Reverse Leakage @ Vr 1 mA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case i4-Pac™-3
Supplier Device Package i4-PAC™
Base Product Number DSEE55
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 25
Win Source Part Number 1056294-DSEE55-24N1F
Ultra Librarian 3D Model Ultra Librarian DSEE55-24N1F CAD Model

Description

The DSEE55-24N1F is a fast recovery diode array from IXYS.

  • Series: Part of the HiPerFRED™ series.
  • Package: Comes in a tube package.
  • Maximum Voltage - DC Reverse (Vr): 1200V.
  • Voltage - Forward (Vf) (Max) @ If: 2.45V @ 60A.
  • Reverse Recovery Time (trr): 220ns.
  • Current - Reverse Leakage @ Vr: 1mA @ 1200V.
  • Diode Configuration: 1 Pair Series Connection.
  • Average Rectified Current (Io) (per diode): 60A.
  • Mounting: Mounted through hole.
  • Package: Packaged in an i4-Pac™-3 case.
  • Benefit: The DSEE55-24N1F is a reliable and high-performance electronic component that is suitable for use in various applications.
