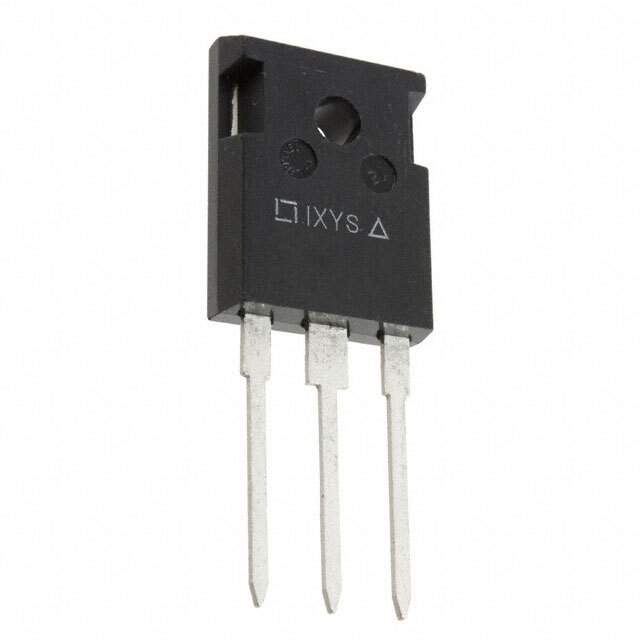

IXEH25N120D1 Real Image
Same model may have multiple batches, images only for reference.

IXEH25N120D1

Part No IXEH25N120D1
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 1200V 36A 200W TO247AD / IGBT NPT 1200 V 36 A 200 W Through Hole TO-247AD
Datasheet
IXEH25N120D1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer IXYS
Packaging Tube
Product Status Obsolete
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 36 A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 25A
Power - Max 200 W
Switching Energy 4.1mJ (on), 1.5mJ (off)
Input Type Standard
Gate Charge 100 nC
Test Condition 600V, 20A, 68Ohm, 15V
Reverse Recovery Time (trr) 130 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Supplier Device Package TO-247AD
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 30
Win Source Part Number 1324199-IXEH25N120D1
Ultra Librarian 3D Model Ultra Librarian IXEH25N120D1 CAD Model

Description

IXEH25N120D1 is an NPT IGBT transistor.

  • Breakdown Voltage: 1200 V
  • Maximum Collector Current: 36 A
  • Package: TO-247AD
  • Mounting Type: Through Holes
  • Maximum On-State Voltage: 3.2V @ 15V and 25A
  • Switching Energy: 4.1mJ (on) and 1.5mJ (off)
  • Gate Charge: 100 nC
  • Input Type: Standard
  • Maximum Power Dissipation: 200 W
  • Operating Temperature Range: -55°C to 150°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Standard Package: 30 units
