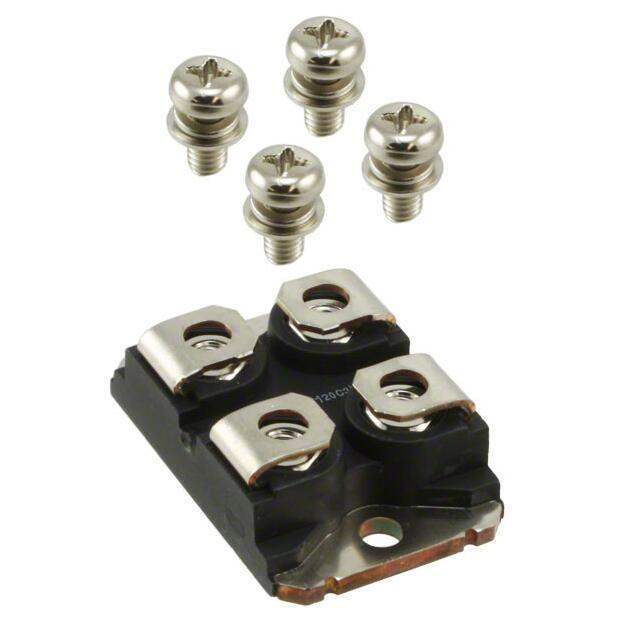

IXYN110N120A4 IXYS
Same model may have multiple batches, images only for reference.

IXYN110N120A4

Part No IXYN110N120A4
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 1200V 110A GNX4 XPT SOT227B
Datasheet
IXYN110N120A4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197457-IXYN110N120A4
Win Source Part Number Cross
Manufacturer IXYS
Category Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Series XPT™, GenX4™
Package Tube
Product Status Active
IGBT Type PT
Vce(on) (Max) @ Vge, Ic 1.8V @ 15V, 110A
Switching Energy 2.5mJ (on), 8.4mJ (off)
Input Type Standard
Ultra Librarian 3D Model Ultra Librarian IXYN110N120A4 CAD Model

Description

The IXYS XPT™ GenX4™ is a single IGBT transistor designed for use in discrete semiconductor products.

  • Type: PT
  • Vce(on): 1.8V @ 15V and 110A
  • Switching Energy (on): 2.5mJ
  • Switching Energy (off): 8.4mJ
  • Input Type: Standard
  • Package: Tube
  • Manufacturer: IXYS
  • Status: Active
