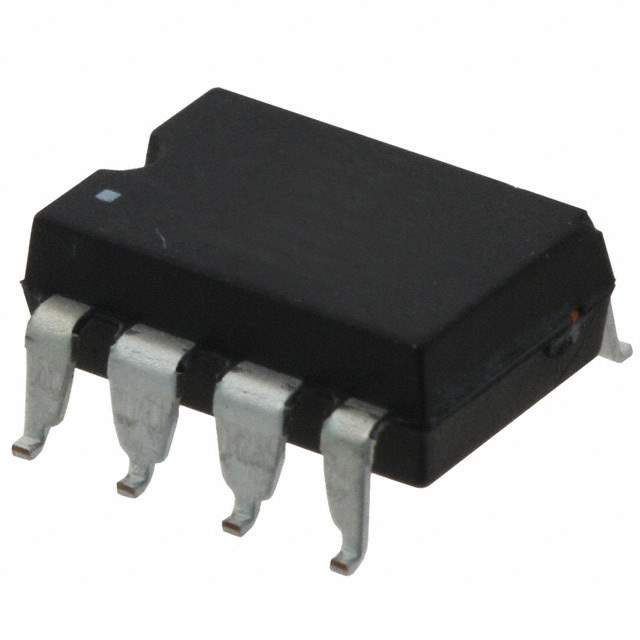

LBB126PTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Reel - TR
Status Active
Circuit DPST (2 Form B)
Output Type AC, DC
Max On Resistance 15 Ohm
Load Current 170mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 250 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-Flatpack
Relay Type Relay
Win Source Part Number 002320-LBB126PTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LBB126PTR CAD Model

Description

The IXYS 002320-LBB126PTR Solid State Relay is a highly efficient and reliable relay that is perfect for a variety of applications.

  • Maximum load current: 170mA
  • Voltage input: 1.2VDC
  • Circuit: DPST
  • Case: 8-Flatpack case
