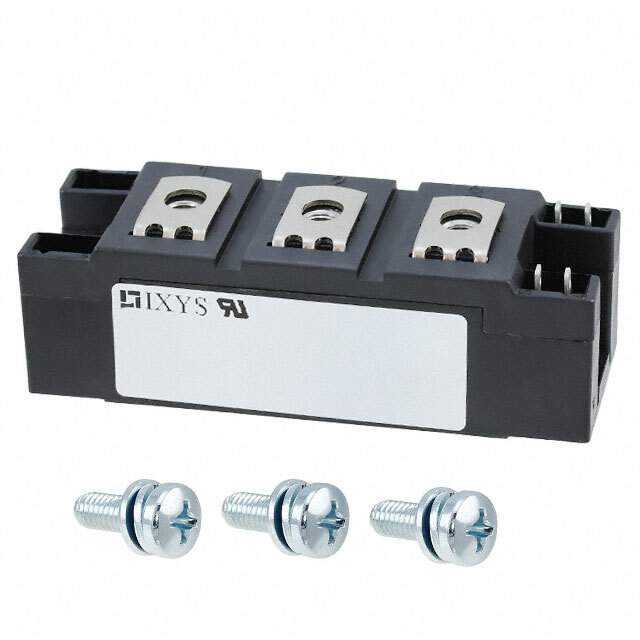

MCC200-16IO1 Real Image
Same model may have multiple batches, images only for reference.

MCC200-16IO1

Part No MCC200-16IO1
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description Thyristor Modules
Datasheet
MCC200-16IO1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1600V
Current - On State (It (AV)) (Maximum) 216A
Current - On State (It (RMS)) (Maximum) 340A
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8000A, 8600A
Current - Hold (Ih) (Maximum) 150mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package Y4-M6
Win Source Part Number 1220589-MCC200-16IO1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name MCC200-16io1
Introduction Date May 09, 2004
Country of Origin Germany
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MCC200-16IO1 CAD Model

Description

IXYS MCC200-16io1 is a series connection SCR module with two SCRs and a maximum on-state current of 340 A.

  • Voltage Rating: 1600 V
  • Mounting Type: Chassis Mounting
  • Applications: Motor control, power supplies, and lighting control
  • Supply and demand status: Limited
  • Popularity: Medium
  • Estimated EOL date: 2023
