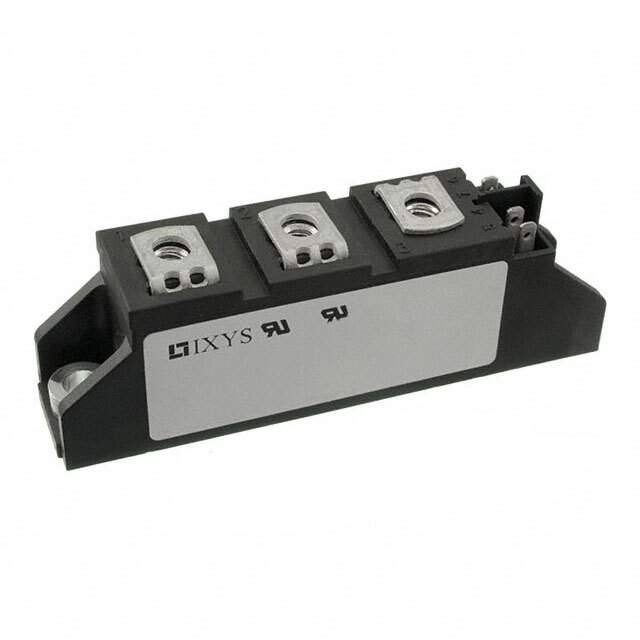

MDD56-12N1B Real Image
Same model may have multiple batches, images only for reference.

MDD56-12N1B

Part No MDD56-12N1B
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.2KV 95A TO240AA / Diode Array 1 Pair Series Connection 1200 V 95A Chassis Mount TO-240AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Package Box
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 95A
Voltage - Forward (Vf) (Max) @ If 1.48 V @ 200 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 mA @ 1200 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case TO-240AA
Supplier Device Package TO-240AA
Base Product Number MDD56
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 1342449-MDD56-12N1B
Ultra Librarian 3D Model Ultra Librarian MDD56-12N1B CAD Model

Description

This diode array from IXYS features a standard recovery time of over 500ns, with a current rating of over 200mA (Io).

  • Diode Type: Standard Recovery > 500ns
  • Current - Average Rectified (Io): Over 200mA
  • Packaging: Box
  • Standard Package: 36
  • Technology: Standard
  • Current - Reverse Leakage @ Vr: 10mA @ 1200V
  • Diode Configuration: 1 Pair Series Connection
  • Mounting Type: Chassis Mount
  • Package / Case: TO-240AA
  • Supplier Device Package: TO-240AA
  • Voltage - DC Reverse (Vr): 1200V
  • Voltage - Forward (Vf) (Max) @ If: 1.48V @ 200A
  • Current - Average Rectified (Io) per Diode: 95A
