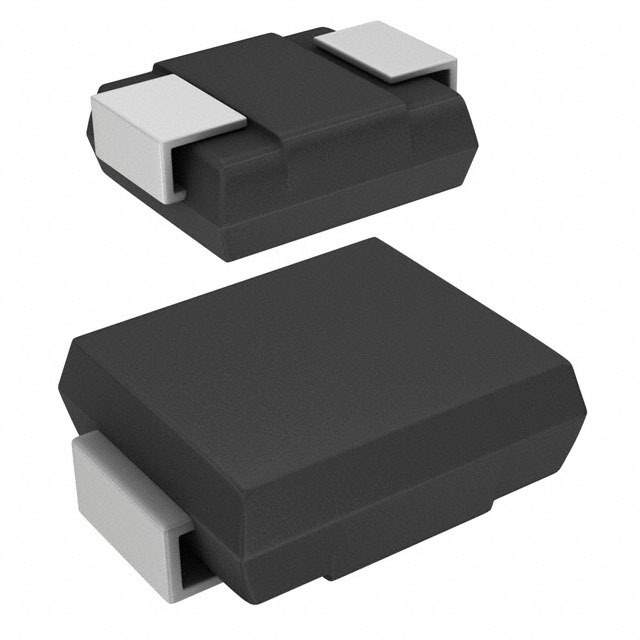

S5M_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

S5M_R1_00001

Part No S5M_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SMC, GENERAL  /  Diode Standard 1000 V 5A Surface Mount SMC (DO-214AB)
Datasheet
S5M_R1_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 5 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Capacitance @ Vr, F 46pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-S5M_R1_00001DKR,3757-S5M_R1_00001CT,3757-S5M_R1_00001TR
Standard Package 800
Win Source Part Number 1090241-S5M_R1_00001
Ultra Librarian 3D Model Ultra Librarian S5M_R1_00001 CAD Model

Description

The 1090241-S5M_R1_00001 is a standard recovery diode with a voltage rating of 1000V and a current rating of 5A.

  • Voltage: 1000V
  • Current: 5A
  • Forward Voltage: 1.1V @ 5A
  • Reverse Leakage Current: 10 µA @ 1000V
  • Capacitance: 46pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Package: DO-214AB, SMC
  • Application: Suitable for use in rectifier circuits where a fast recovery time is not required.
