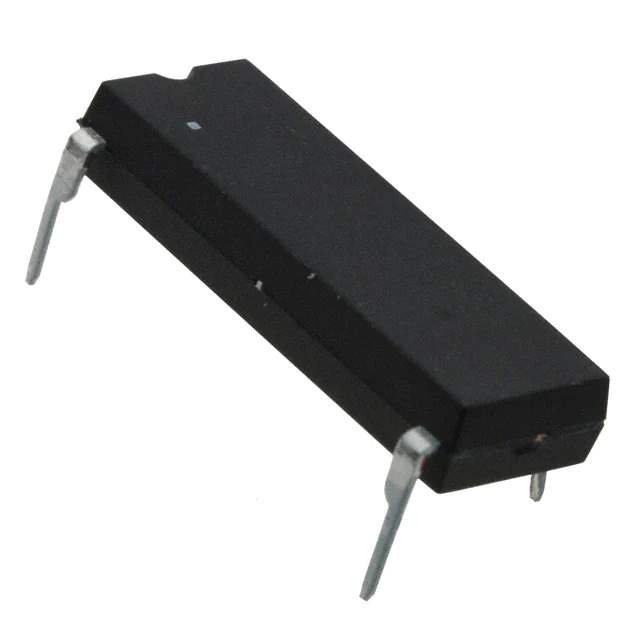

PD2601 Real Image
Same model may have multiple batches, images only for reference.

PD2601

Part No PD2601
Manufacturer IXYS
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 0-600V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series PD
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 600 V
Load Current 1 A
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 16-DIP
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 653844-PD2601
Ultra Librarian 3D Model Ultra Librarian PD2601 CAD Model

Description

The PD2601 is a solid state relay from IXYS.

  • Series: PD
  • Termination Style: PC pin
  • Output Type: AC zero cross
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 1 A
  • Voltage Load: 0 V to 600 V
  • Mounting: Through hole
  • Package: 16-DIP with 4 leads
  • Suitable for: Various applications requiring efficient and precise switching of electrical signals
