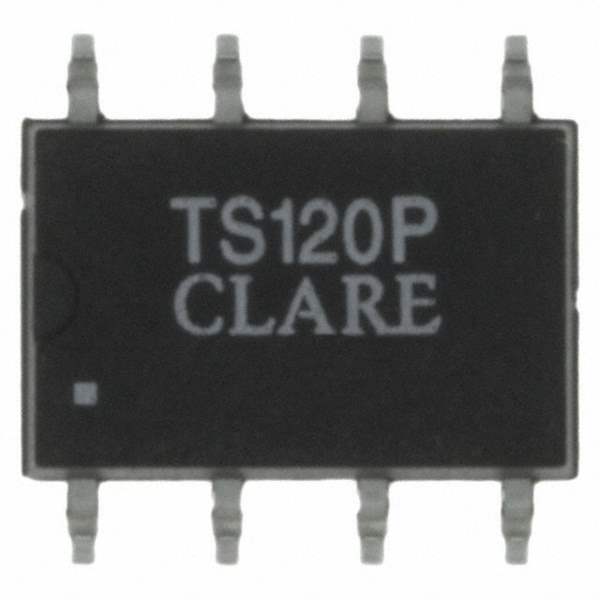

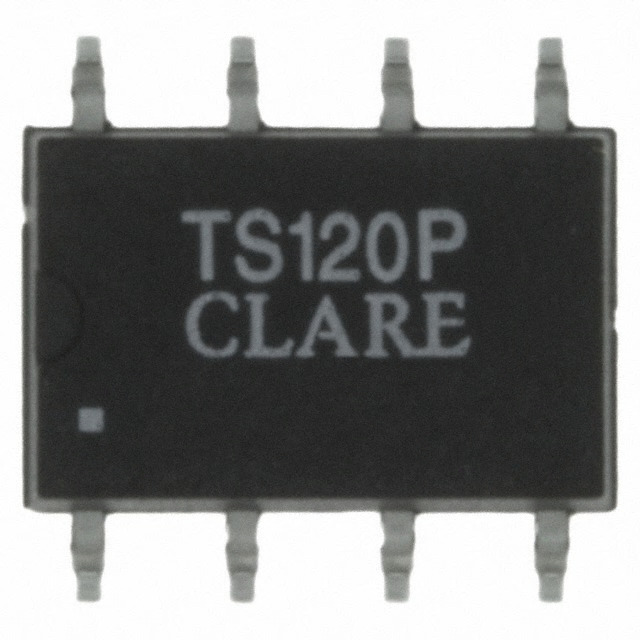

TS120PTR IXYS
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IXYS Integrated Circuits Division
Packaging Reel package
Function Relay Switch
Number of Circuits 2
Power (Watts) 800mW
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 8-ESOP (0.250", 6.35mm Width)
Manufacturer Package 8-Flatpack
Includes Optocoupler
Win Source Part Number 798402-TS120PTR
Popularity Medium
Supply and Demand Status Limited
Family Name TS120
Introduction Date February 23, 2001
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TS120PTR CAD Model

Description

The IXYS Integrated Circuits Division TS120PTR is a relay switch with an optocoupler.

  • Package: 8-ESOP (0.250", 6.35mm Width)
  • Mounting: SMD
  • Power: 800mW
  • Family Name: TS120
  • Operating Temperature Range: -40°C ~ 85°C
