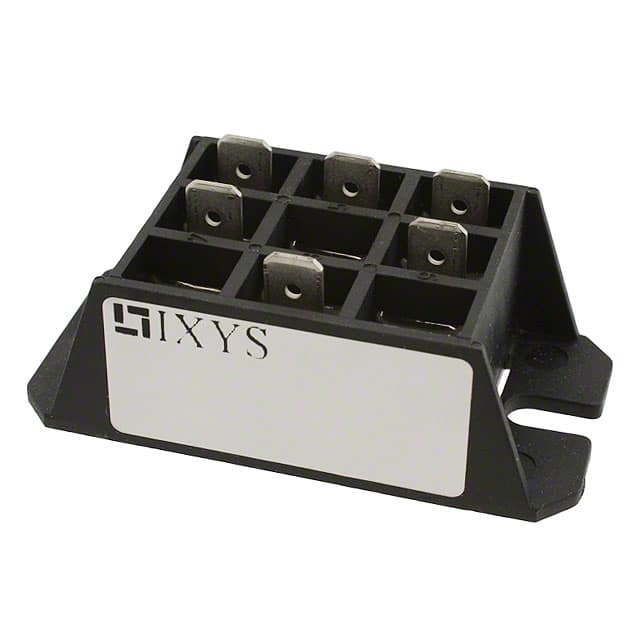

VHF36-16IO5
Same model may have multiple batches, images only for reference.

VHF36-16IO5

Part No VHF36-16IO5
Manufacturer IXYS
Catalog TVS - Thyristors
Description RECT BRIDGE 1PH 1600V FO-F-A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Box
Product Status Obsolete
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 36 A
Voltage - Gate Trigger (Vgt) (Max) 1 V
Current - Gate Trigger (Igt) (Max) 65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 320A, 350A
Current - Hold (Ih) (Max) 100 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case FO-F-A
Base Product Number VHF36
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 847191-VHF36-16IO5
Ultra Librarian 3D Model Ultra Librarian VHF36-16IO5 CAD Model

Description

The VHF36-16IO5 is a thyristor module from IXYS. VHF36-16IO5 from IXYS.

  • Current: 36 A
  • Off-State Voltage: 1.6 kV
  • Configuration: 2 SCRs and 2 Diodes (Bridge)
  • Mounting Type: Chassis Mount
  • Package: Box
