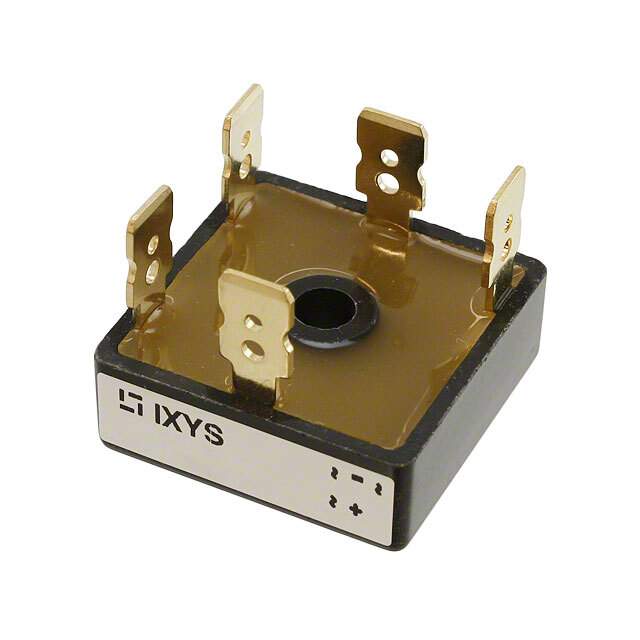

VUO36-12NO8 Real Image
Same model may have multiple batches, images only for reference.

VUO36-12NO8

Part No VUO36-12NO8
Manufacturer IXYS
Catalog Bridge Rectifiers
Description Three Phase Rectifier Bridge | BRIDGE RECT 3P 1.2KV 27A FO-B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.2kV
Current - Average Rectified (Io) 27A
Voltage - Forward (Vf) (Maximum) at If 1.04V at 15A
Current - Reverse Leakage at Vr 40μA at 1200V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style QC Terminal
Manufacturer Package 5-Square, FO-B
Supplier Device Package FO-B
Family Part Number VUO36
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1279939-VUO36-12NO8
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VUO36-12NO8 CAD Model

Description

The IXYS three-phase diode is a standard technology diode with a QC terminal mounting style.

  • Mounting Style: QC terminal
  • Current Average Rectified (Io): 27A
  • Voltage Peak Reverse (maximum): 1.2kV
  • Temperature Range: -40°C to 150°C
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 50
  • Manufacturer: IXYS
  • Family Part Number: VUO36
  • Supply and Demand Status: Limited
  • MSL Level: 1 (unlimited)
  • Voltage Forward (Vf) (maximum) @ If: 1.04V @ 15A
  • Current Reverse Leakage @ Vr: 40µA @ 1200V
