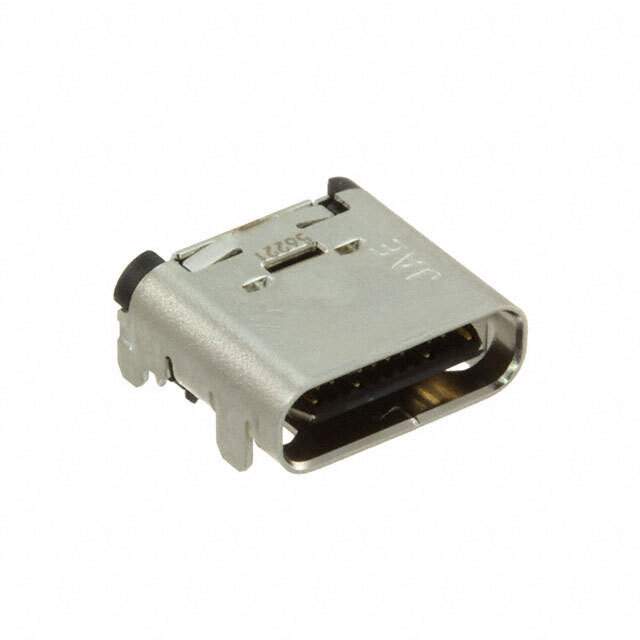

Same model may have multiple batches, images only for reference.

DX07S024JJ2R1300

Name: DX07S024JJ2R1300
Brand: JAE Electronics
SKU: 1056545
Availability: InStock
Rating: 4.91 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DX07S024JJ2R1300
Manufacturer	JAE Electronics
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCP USB3.1 TYPEC 24P SMD RA / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Datasheet	DX07S024JJ2R1300 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr	JAE Electronics
Series	DX07
Package	Tape & Reel
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Receptacle
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Termination	Solder
Features	Pick and Place
Temperature Range - Operating	-30°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.25A
Voltage - Rated	20V
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Insulation Color	Black
Base Product Number	DX07S024
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	670-2794-6,670-2794-1,670-2794-2
Standard Package	1,300
Win Source Part Number	1056545-DX07S024JJ2R1300
Ultra Librarian 3D Model	Ultra Librarian DX07S024JJ2R1300 CAD Model

Alternative Products

Description

The JAE Electronics DX07S024JJ2R1300 is a USB-C (USB TYPE-C) connector that has a Win Source Part Number of 1056545.

Termination: solder
Contact Finish: gold
Packaging: tape and reel
Contacts: 24
Type: receptacle
Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Shielding: shielded
Ingress Protection: no ingress protection rating
Ports: 1
Standard Package: 1,300
Voltage: 20V
Mounting Feature: horizontal
Mating Cycles: 10,000
Insulation Color: black
Mounting Type: surface mount, right angle, and through-hole
Temperature Range: -30°C to 80°C
Shell/Shielding Material: steel, stainless
Alternative Parts: 7-188275-4, 770849-8, 3-640442-5, 90059-0007, 87568-1493, and 105017-0001
MSL Level: 1 (unlimited)
Current Rating: 0.25A and 1.25A
HTSUS Code: 8536.69.4040
