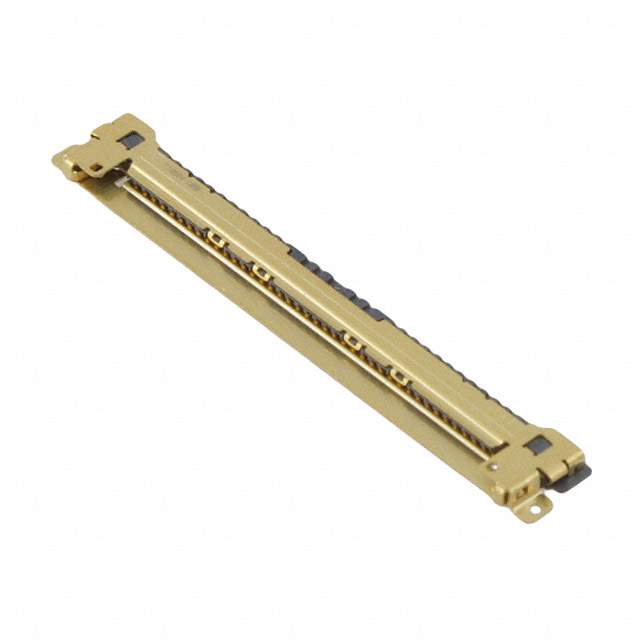

HD1S040HA1R6000 Real Image
Same model may have multiple batches, images only for reference.

HD1S040HA1R6000

Part No HD1S040HA1R6000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description HD1 SERIES LVDS RECEPTACLE
Datasheet
HD1S040HA1R6000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Outer Shroud Contact
Style Board to Cable/Wire
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.020" (0.50mm)
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.9μin (0.10μm)
Insulation Height 0.039" (1.00mm)
Temperature Range - Operating -40°C to 85°C
Contact Finish - Post Gold
Features Shielded, Solder Retention
Voltage Rating 100V
Applications General Purpose
Insulation Material Plastic, Halogen Free
Contact Finish Thickness - Post 1.25μin (0.03μm)
Win Source Part Number 1042866-HD1S040HA1R6000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 6k pcs
Ultra Librarian 3D Model Ultra Librarian HD1S040HA1R6000 CAD Model

Description

The HD1S040HA1R6000 connector from JAE Electronics is a shielded, solder retention connector with a receptacle connector type.

  • Shielded: Yes
  • Solder Retention: Yes
  • Connector Type: Receptacle
  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 40
  • Positions Loaded: All
  • Contact Type: Outer shroud contact
  • Termination: Solder
  • Fastening: Detent lock
  • Package: Reel
  • Insulation Material: Plastic, Halogen-free
  • Voltage Rating: 100V
  • Operating Temperature: -40°C to 85°C
  • Application: General-purpose
