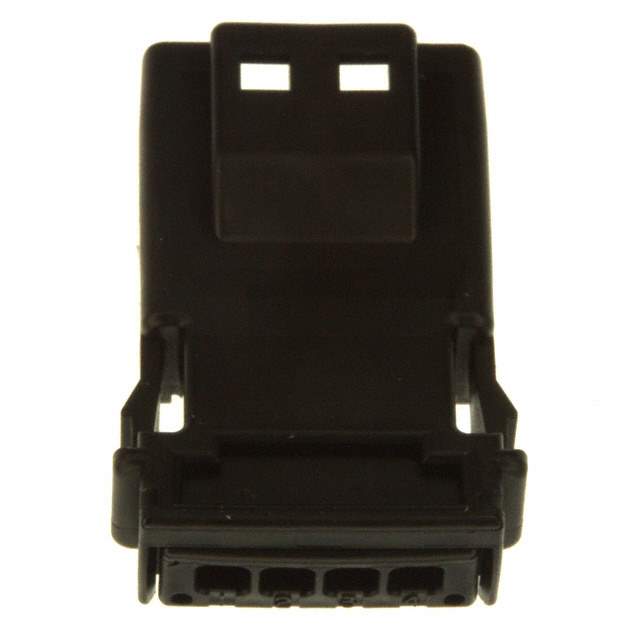

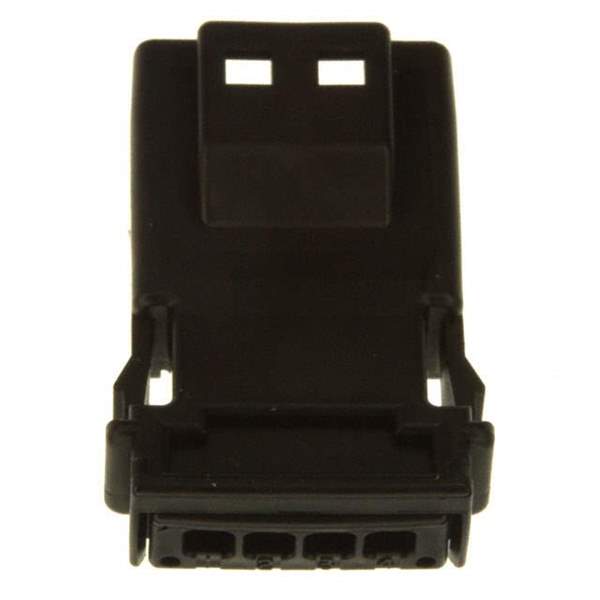

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series MX19
Package Bulk
Connector Type Plug
Contact Type Male Pin
Number of Positions 4
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp and Clamp
Fastening Type Latch Holder
Color Black
Features Waterproof
Note Contacts Not Included
Base Product Number MX190
Standard Package 600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1351388-MX19004P51
Ultra Librarian 3D Model Ultra Librarian MX19004P51 CAD Model

Description

The MX19 series connector is a 4-position plug connector with a waterproof feature.

  • Number of Positions: 4
  • Pitch: 0.098" (2.50mm)
  • Contact Type: Male Pin
  • Contact Material: Copper Alloy
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Surface Mount
  • Connector Type: Plug
  • Style: Free Hanging (In-Line)
  • Contact Termination: Crimp and Clamp
  • Contacts @ Load: Not Included
  • Series: MX19
  • Category: Connectors, Interconnects
