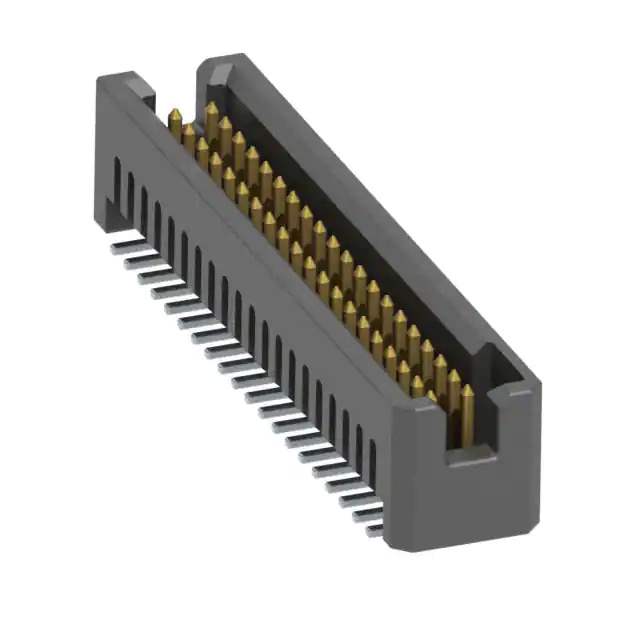

TFM-120-02-L-D

Name: TFM-120-02-L-D
Brand: Samtec Inc.
SKU: 936422
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFM-120-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 40POS 1.27MM / Connector Header Surface Mount 40 position 0.050" (1.27mm)
Datasheet	TFM-120-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFM
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.131" (3.33mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.9A per Contact
Voltage Rating	275VAC
Base Product Number	TFM-120
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	936422-TFM-120-02-L-D
Ultra Librarian 3D Model	Ultra Librarian TFM-120-02-L-D CAD Model

Alternative Products

Description

The Tiger Eye™ TFM series is a range of male pin headers for connectors and interconnects. This specific header, with part number 936422-TFM-120-02-L-D, features 40 positions and is designed for board-to-board or cable connections.

Fastening Type: push-pull
Termination: solder
Contact Material: phosphor bronze
Pitch: 0.050" (1.27mm)
Plating: gold
Insulation Material: liquid crystal polymer (LCP)
Operating Temperatures: -55°C to 125°C
