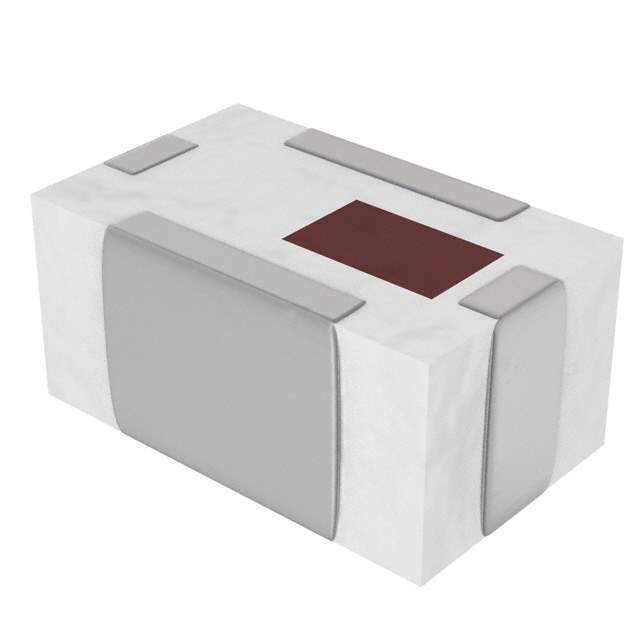

5515BP15C1020E Real Image
Same model may have multiple batches, images only for reference.

5515BP15C1020E

Part No 5515BP15C1020E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description FILTER BANDPASS 5.5GHZ WIFI
Datasheet
5515BP15C1020E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency 5.5GHz Center
Bandwidth 1.02GHz
Filter Type Band Pass
Insertion Loss 1.5dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.039" (1.00mm)
Win Source Part Number 1006103-5515BP15C1020E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian 5515BP15C1020E CAD Model

Description

The Johanson Technology Inc. 1006103-5515BP15C1020E is a bandpass filter with a frequency range of 5.5GHz center and a bandwidth of 1.02GHz.

  • Filter Type: Bandpass
  • Frequency Range: 5.5GHz Center
  • Bandwidth: 1.02GHz
  • Insertion Loss: 1.5dB
  • Mounting Type: Surface Mount (SMD)
  • Application: Filter
  • Packaging: Reel
