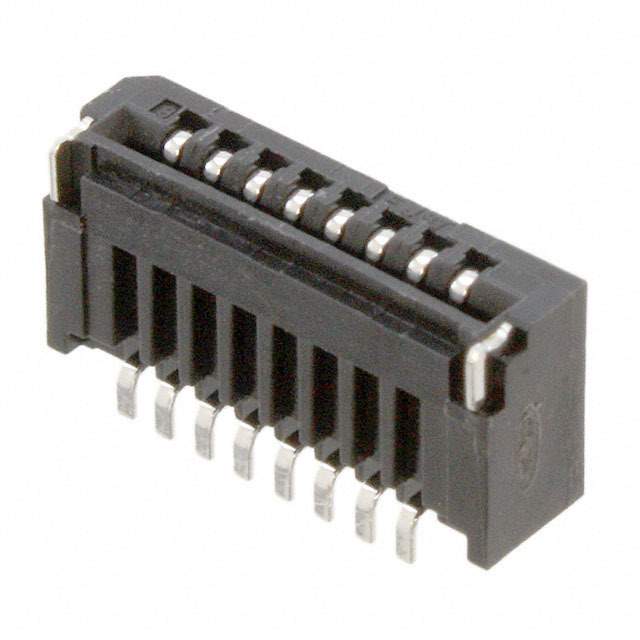

Same model may have multiple batches, images only for reference.

08FMN-SMT-A-TF(LF)(SN)

Name: 08FMN-SMT-A-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 414682
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	08FMN-SMT-A-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC TOP 8POS 1.00MM R/A
Datasheet	08FMN-SMT-A-TF(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	8
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.118" (3.00mm)
Cable End Type	Straight
Contact Finish	Tin
Housing Material	Polyamide (PA6T), Nylon 6T
Features	Low Insertion Force (LIF)
Voltage Rating	50V
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Black
Win Source Part Number	1000415-08FMN-SMT-A-TF(LF)(SN)
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 08FMN-SMT-A-TF(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 08FMN-SMT-A-TF(LF)(SN) is a surface mount FFC/FPC connector designed for use in various applications.

Positions: 8
Pitch: 1.00mm
Insertion Force: low
Voltage Rating: 50V
Current Rating: 0.5A
Temperature Range: -25°C to 85°C
