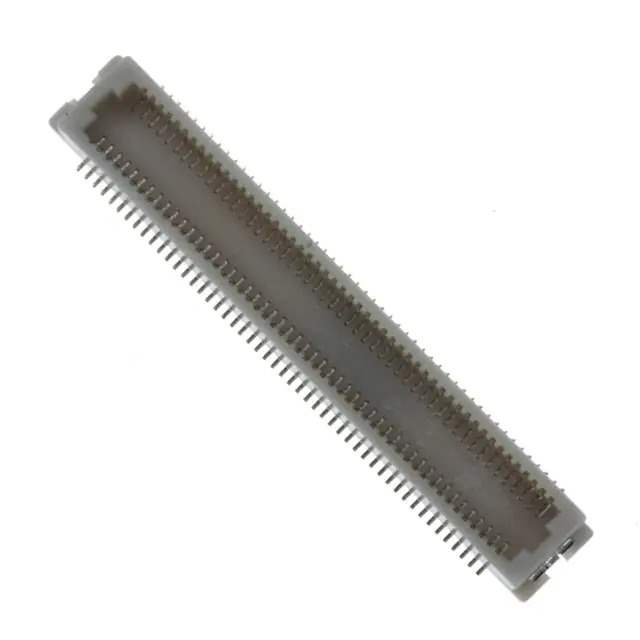

100P-JMDSS-G-1-TF(LF)(SN)

Name: 100P-JMDSS-G-1-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 848557
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	100P-JMDSS-G-1-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN PLUG 100POS SMD GOLD / 100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JST Sales America Inc.
Series	JMD
Package	Tape & Reel
Product Status	Active
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	100
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	4.5mm
Base Product Number	100P-JMD
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848557-100P-JMDSS-G-1-TF(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian 100P-JMDSS-G-1-TF(LF)(SN) CAD Model

Description

The 848557-100P-JMDSS-G-1-TF(LF)(SN) is a 100-position edge type, mezzanine connector from JST Sales America Inc. It has a pitch of 0.020" (0.50mm) and is designed for surface mount mounting.

Positions: 100
Type: Edge type, mezzanine
Pitch: 0.020" (0.50mm)
Mounting Type: Surface mount
Connector Style: Plug with outer shroud contacts
Contact Finish: Gold
Series: JMD
Mated Stacking Height: 4.5mm
Flammability Rating: UL94 V-0
Package: Tape & reel, 1,500 pcs
