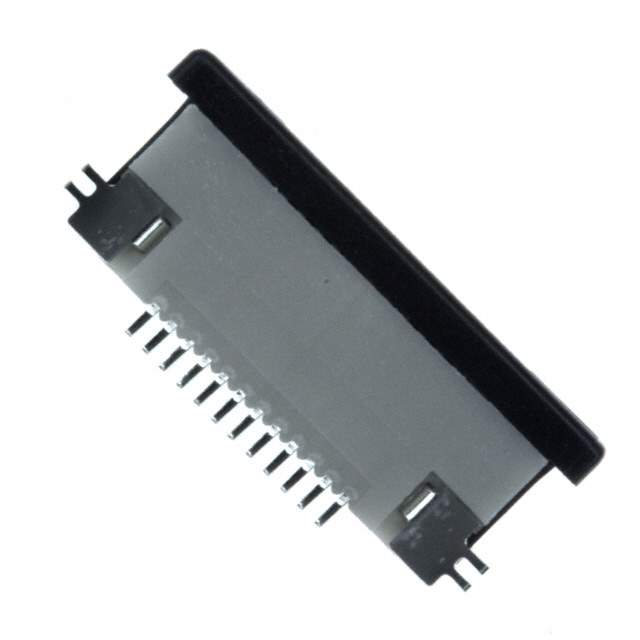

Same model may have multiple batches, images only for reference.

12FLZ-SM2-TB(LF)(SN)(P)

Name: 12FLZ-SM2-TB(LF)(SN)(P)
Brand: JST Sales America Inc.
SKU: 1034694
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	12FLZ-SM2-TB(LF)(SN)(P)
Manufacturer	JST Sales America Inc.
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Ffc / Fpc Board Connector, Flz Series, Surface Mount, Receptacle, 12, 0.5 Mm Rohs Compliant: Yes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Contact Material	Bronze
Contact Plating	Tin
Current Rating	500 mA
Gender	Receptacle
Housing Material	Nylon
Maximum Operating Temperature	85 °C
Min Operating Temperature	-25 °C
Mount	Surface Mount
Number of Contacts	12
Number of Positions	12
Number of Rows	1
Packaging	Tape & Reel (TR)
Pitch	508 µm
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	50 V
Wire/Cable Type	Straight
Win Source Part Number	1034694-12FLZ-SM2-TB(LF)(SN)(P)
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	JST Sales America Inc.
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 12FLZ-SM2-TB(LF)(SN)(P) CAD Model

Alternative Products

Description

The JST Sales America Inc. 1034694-12FLZ-SM2-TB(LF)(SN)(P) connector is a receptacle connector designed for flat flexible cable (FFC) and flat flexible printed circuit (FPC) applications.

Pitch: 508 micrometers
Mounting Type: Surface Mount
Contact Plating: Tin
Voltage Rating: 50V
Current Rating: 500mA
Material Flammability Rating: UL94 V-0
RoHS Compliant: Yes
