22R-JED(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

22R-JED(LF)(SN)

Part No 22R-JED(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors

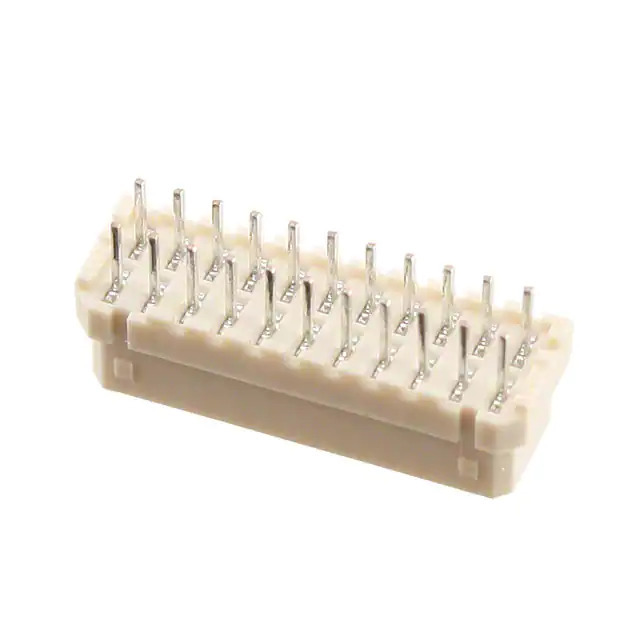

Description CONN RCPT 22POS 0.049 TIN PCB / 22 Position Receptacle Connector 0.049" (1.25mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr JST Sales America Inc.
Series JED
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 22
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Insulation Color Natural
Insulation Height 0.173" (4.40mm)
Contact Length - Post 0.079" (2.00mm)
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post -
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) 1A
Voltage Rating 50V
Applications -
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post -
Base Product Number 22R-JED
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363506-22R-JED(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 22R-JED(LF)(SN) CAD Model

Description

The JST Sales America Inc. 22R-JED is a header connector from JST Sales America Inc..

  • Connector Type: Receptacle
  • Contact Gender: Female Socket
  • Number of Positions: 22
  • Number of Rows: 2
  • Row Spacing: 0.079" (2.00mm)
  • Mounting Type: Through Hole
  • Package: Bulk
  • Temperature Range: -25°C to 85°C
  • Current Rating: 1A
  • Pitch: 0.049" (1.25mm)
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Insulation Color: Natural
  • Contact Finish Mating: Tin
  • Product Status: Active
  • California Prop 65: May Contain Substances Covered Under California Prop 65
