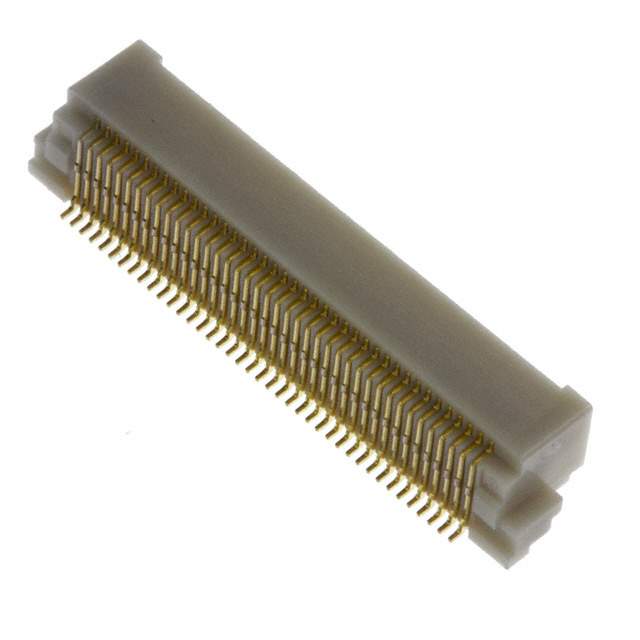

The 80PS-JMDSS-G-1-TF(LF)(SN) is a rectangular connector manufactured by JST Sales America Inc. This connector belongs to the JMD series, renowned for its reliability and high contact density in wire-to-board connections. It features 80 positions (contacts), making it suitable for applications requiring a large number of signals in a compact space. The connector is specifically designed for automated surface mounting (SMT) on printed circuit boards (PCBs). The 'LF' designation indicates that the connector is lead-free, adhering to environmental regulations, and 'SN' signifies tin plating on the contacts to enhance solderability and corrosion resistance.

Applications:

• Industrial Automation: Used in control panels, programmable logic controllers (PLCs), and other automation equipment for signal and power distribution.
• Telecommunications Equipment: Found in networking devices, servers, and telecommunication infrastructure for high-density interconnections.
• Medical Instrumentation: Employed in diagnostic equipment, patient monitoring systems, and medical devices requiring reliable and compact connections.
• Data Processing Systems: Used in computers, servers, and data storage devices for connecting various internal components.
• Consumer Electronics: Applied in high-end consumer products such as advanced displays, audio equipment, and complex control panels.

Features:

• High Pin Count: Provides 80 positions, enabling dense signal routing.
• Surface Mount Design: Designed for automated placement and soldering on PCBs.
• Lead-Free Compliance: Meets RoHS standards for environmental safety.
• Tin-Plated Contacts: Ensures excellent solder joint formation and corrosion resistance.
• Positive Locking Mechanism: Offers a secure and reliable connection, preventing accidental disconnections.

Benefits:

• Space Efficiency: High pin count in a compact package saves valuable board space.
• Automated Manufacturing: SMT compatibility reduces assembly time and costs.
• Environmentally Friendly: Lead-free construction complies with global environmental regulations.
• Reliable Connections: Positive locking mechanism ensures stable performance in demanding environments.
• Improved Signal Integrity: Optimized design minimizes signal loss and interference.

Technical Specifications:

The 80PS-JMDSS-G-1-TF(LF)(SN) connector typically has a contact pitch of 2.0 mm. The housing material is usually a high-temperature resistant plastic, capable of withstanding reflow soldering temperatures. The current rating is generally around 2-3 amps per contact, and the voltage rating is typically 250V AC/DC. The operating temperature range is typically between -25°C to +85°C. The connector is designed to mate with corresponding JMD series headers or wire harnesses, ensuring compatibility and reliable performance. The TF indicates Tape and Reel packaging.
