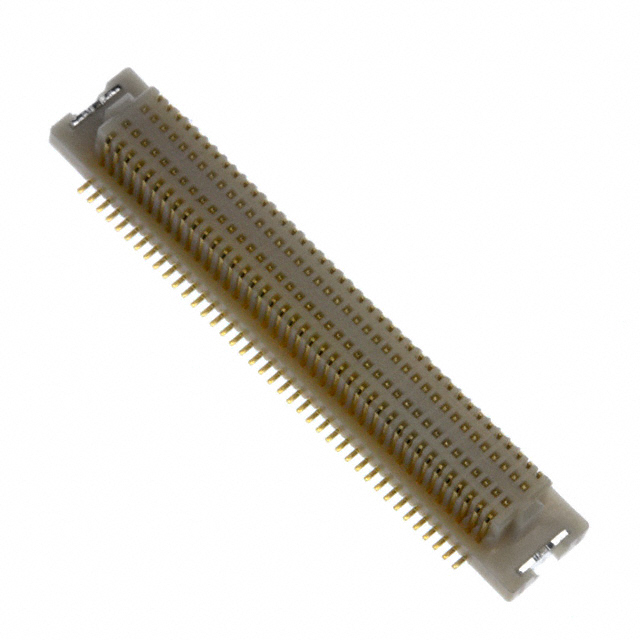

80R-JMDSS-G-1-TF(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

80R-JMDSS-G-1-TF(LF)(SN)

Part No 80R-JMDSS-G-1-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RECEPT JMD 80POS GOLD
Datasheet
80R-JMDSS-G-1-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4.5mm, 5mm, 6mm
Height Above Board 0.122" (3.10mm)
Win Source Part Number 1010270-80R-JMDSS-G-1-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 80R-JMDSS-G-1-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1010270-80R-JMDSS-G-1-TF(LF)(SN) is a high-quality connector that is designed to provide reliable connections for a range of applications.

  • Feature: Receptacle with center strip contacts
  • Suitability: Use in a variety of applications
  • Design: Easy to use
  • Feature: Solder retention for added reliability
  • Availability: Range of mated stacking heights
  • Performance: High-quality construction and reliability
  • Versatility: Can be used in a range of applications
