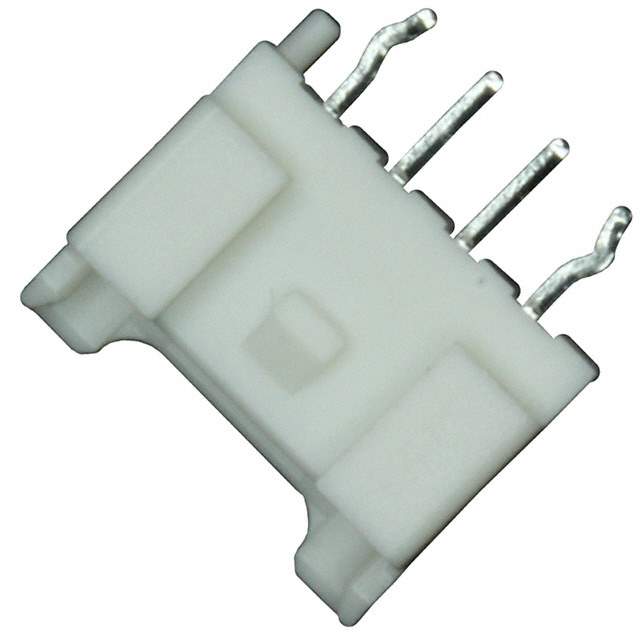

The B04B-PASK-1 (LF)(SN) is a 4-position housing from JST's PA series of wire-to-board connectors. These housings are designed for secure and reliable connections in various electronic applications.

Applications

• Internal wiring in electronic equipment.
• Signal and power connections in consumer electronics.
• Automotive electronics and control systems.
• Industrial control equipment.
• Robotics and automation systems.

Features

• 4 positions for accepting crimp contacts.
• PA (Polyamide) housing material for durability and insulation.
• Polarization features to prevent incorrect mating.
• Secure locking mechanism to ensure reliable connection.
• RoHS compliant (LF = Lead-Free).
• Tin plating (SN) for improved solderability.
• Designed for wire-to-board connections.
• Compact design for space-saving applications.

Benefits

• Reliable connection: Secure locking mechanism prevents accidental disconnections.
• Durable construction: PA housing material provides excellent mechanical strength and electrical insulation.
• Easy to use: Simple crimping and mating process.
• RoHS compliance: Environmentally friendly, lead-free construction.
• Polarization: Ensures correct mating and prevents damage.
• Space-saving: Compact design allows for use in tight spaces.

Additional Details

The B04B-PASK-1 (LF)(SN) housing is specifically designed to mate with JST's PA series crimp contacts. These contacts provide a gas-tight connection, ensuring long-term reliability. The housings are designed for easy insertion and extraction of the contacts. The (LF)(SN) designation indicates that the part is lead-free and has a tin plating. Mating headers are also required for a complete connection. Proper crimping tools are essential for ensuring a reliable and secure connection. Voltage and current ratings depend on the chosen contacts and application requirements. Operating temperature range depends on the housing material and application conditions.
