Same model may have multiple batches, images only for reference.

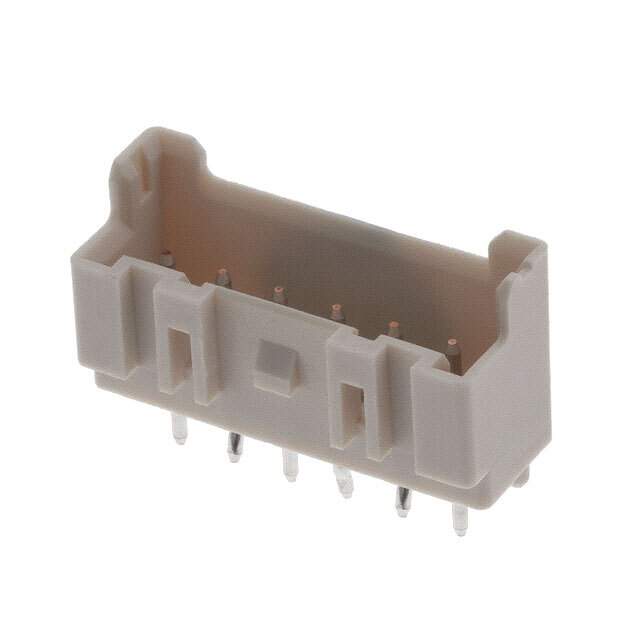

B06B-XASK-1-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B06B-XASK-1-A(LF)(SN)

Part No B06B-XASK-1-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.5MM / Connector Header Through Hole 6 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.346" (8.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.3mm
Base Product Number B06B-XAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names B06B-XASK-1-A(LF)(SN)-ND,B06B-XASK-1-ALFSN,455-4079
Standard Package 400
Win Source Part Number 1014981-B06B-XASK-1-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B06B-XASK-1-A(LF)(SN) CAD Model

Description

The XA series header connector with 6 positions is a board-to-cable/wire type connector designed for use in electronic equipment.

  • Insulation Material: polyamide (PA66), nylon 6/6, glass-filled
  • Insulation Color: natural
  • Contact Shape: circular
  • Fastening Type: locking ramp
  • Voltage: 250V
  • Current Rating: 3A
  • Mated Stacking Height: 11.3mm
  • Shrouded: 4 walls
  • Contact Material: copper alloy
  • Contact Finish: tin
  • Temperature Range: -25°C to 85°C
  • Package: sold in bulk
  • Standard Package: 400
