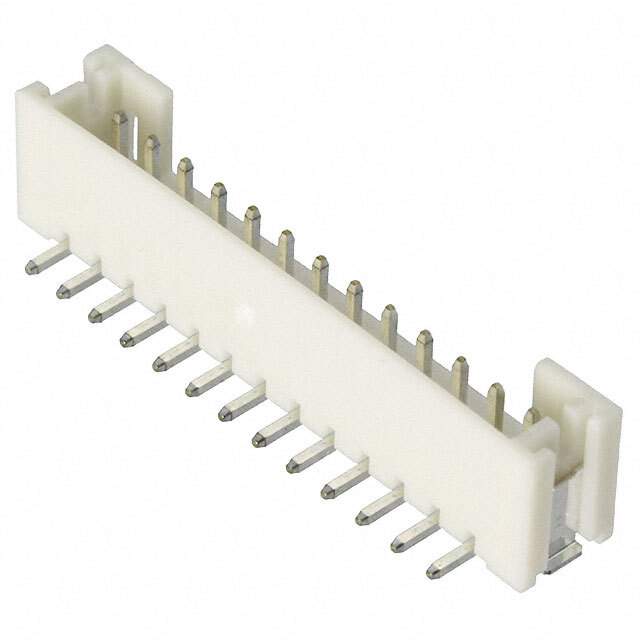

B13B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B13B-PH-SM4-TB(LF)(SN)

Part No B13B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 13POS 2MM SMD / Conn Shrouded Header HDR 13 POS 2mm Solder ST SMD T/R
Datasheet
B13B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 13
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 769445-B13B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Family Name PH
Introduction Date December 04, 2012
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian B13B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 769445-B13B-PH-SM4-TB(LF)(SN) is a 13-position header connector with male pins.

  • Design: Shrouded-4 Wall
  • Package Type: Reel
  • Application: Board to Cable/Wire
  • Pitch: 0.079 inches
  • Contact Finish (Mating/Post): Tin
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Operating Temperature Range: -25°C to 85°C
  • Market Popularity: Medium
  • Supply and Demand Status: Balanced
