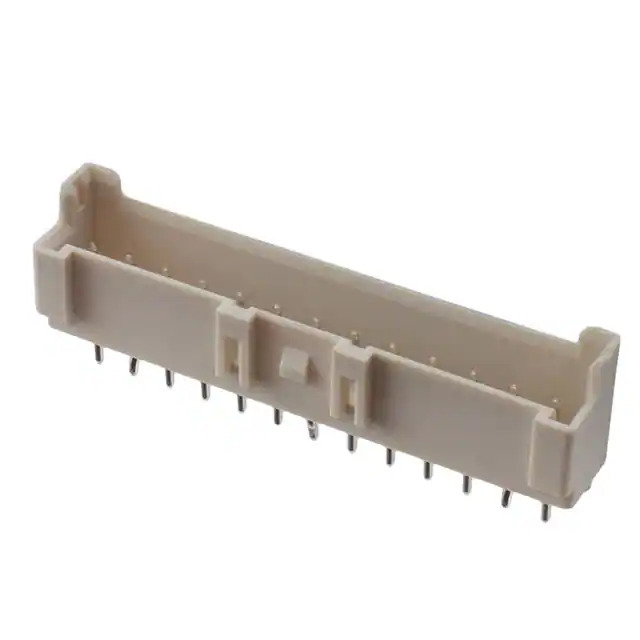

Same model may have multiple batches, images only for reference.

B13B-XASK-1-A(LF)(SN)

Name: B13B-XASK-1-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1362600
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B13B-XASK-1-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 13POS 2.5MM / Connector Header Through Hole 13 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	13
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	-
Insulation Height	0.346" (8.80mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	11.3mm
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	B13B-XAS
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362600-B13B-XASK-1-A(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B13B-XASK-1-A(LF)(SN) CAD Model

Alternative Products

Description

The 1362600-B13B-XASK-1-A(LF)(SN) is a male pin header connector from JST Sales America Inc.

Series: XA
Operating Temperature: -25°C ~ 85°C
Number of Positions: 13
Number of Rows: 1
Current Rating (Amps): 3A
Voltage Rating: 250V
Pitch: 0.098" (2.50mm)
Mounting Type: Through Hole
Termination: Press-Fit, Solder
Fastening Type: Locking Ramp
Connector Type: Header
Contact Type: Male Pin
Shrouding: Shrouded - 4 Wall
Style: Board to Cable/Wire
