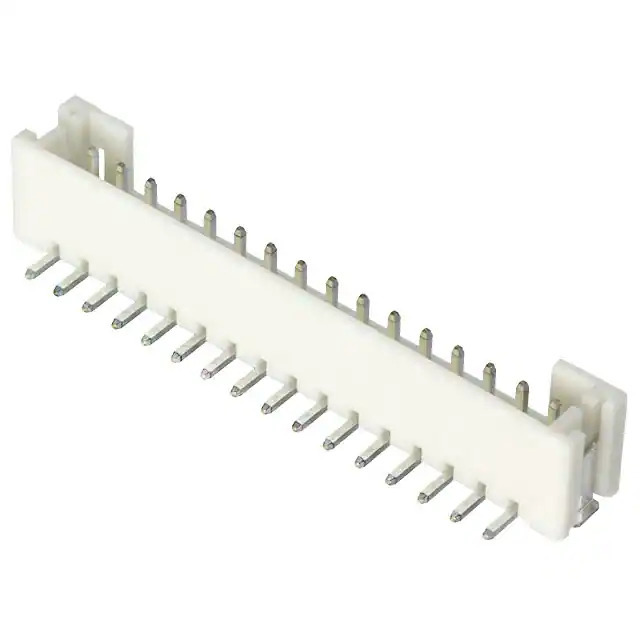

B16B-PH-SM4-TBT(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B16B-PH-SM4-TBT(LF)(SN)

Part No B16B-PH-SM4-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 16POS 2MM / Connector Header Surface Mount 16 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B16B-PH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362597-B16B-PH-SM4-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B16B-PH-SM4-TBT(LF)(SN) CAD Model

Description

The 1362597-B16B-PH-SM4-TBT(LF)(SN) is a male pin header connector from JST Sales America Inc.

  • Mounting Type: Surface Mount
  • Number of Positions: 16
  • Number of Rows: 1
  • Pitch: 0.079" (2.00mm)
  • Fastening Type: Detent Lock
  • Current Rating: 2A
  • Voltage Rating: 100V
  • Design: Shrouded - 4 Wall, Pick and Place, Solder Retention
  • Termination: Solder
  • Contact Finish: Tin
  • Product Status: Active
  • Packaging: Tape & Reel
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
