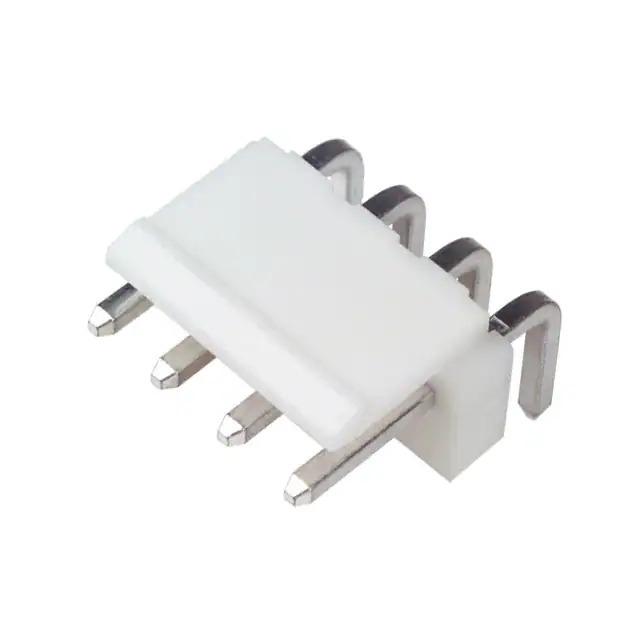

B4PS-VH JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B4PS-VH

Part No B4PS-VH
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 3.96MM / Connector Header Through Hole, Right Angle 4 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 4
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length -
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating -
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377946-B4PS-VH
Ultra Librarian 3D Model Ultra Librarian B4PS-VH CAD Model

Description

The 1377946-B4PS-VH is a male pin header connector from JST Sales America Inc. Bold the product name (e.g., BAV99S,135 → 1377946-B4PS-VH) and manufacturer (e.g., Nexperia USA Inc. → JST Sales America Inc.).

  • Series: VH
  • Connection Type: Board to Cable/Wire
  • Pitch: 0.156" (3.96mm)
  • Number of Positions: 4
  • Number of Rows: 1
  • Current Rating: 10A
  • Voltage Rating: 250V
  • Shrouded: 1 Wall
  • Fastening Type: Locking Ramp
  • Contact Finish: Tin-Lead
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Market Status: Obsolete
