Same model may have multiple batches, images only for reference.

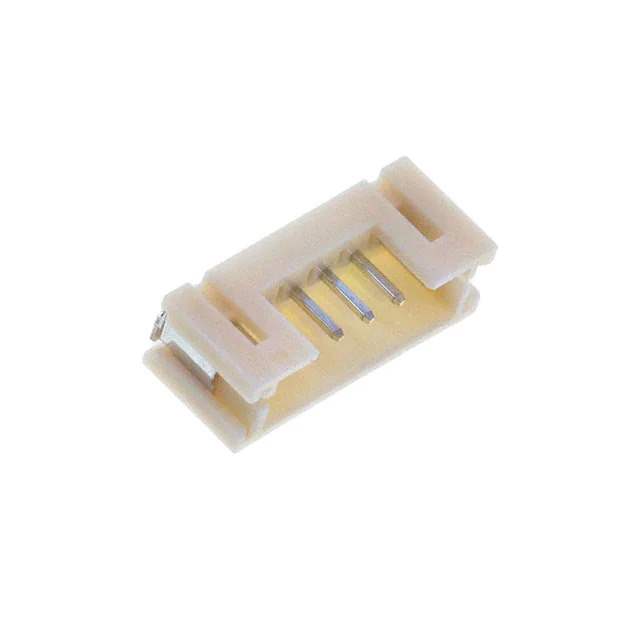

B6B-PH-SM4-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B6B-PH-SM4-TBT(LF)(SN)

Part No B6B-PH-SM4-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 2MM / Connector Header Surface Mount 6 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Base Product Number B6B-PH-S
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850010-B6B-PH-SM4-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B6B-PH-SM4-TBT(LF)(SN) CAD Model

Description

The 850010-B6B-PH-SM4-TBT(LF)(SN) is a male pin header connector from the PH series. It is manufactured by JST Sales America Inc.

  • Number of Positions: 6
  • Termination Style: Solder
  • Fastening Type: Detent Lock
  • Shrouded: Yes, 4 Walls
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Contact Shape: Square
  • Mating Contact Length: 0.130" (3.30mm)
  • Application: Board to Cable/Wire
  • Package: Tape & Reel
  • Packaging Quantity: 1,000 pcs
  • Product Status: Active
