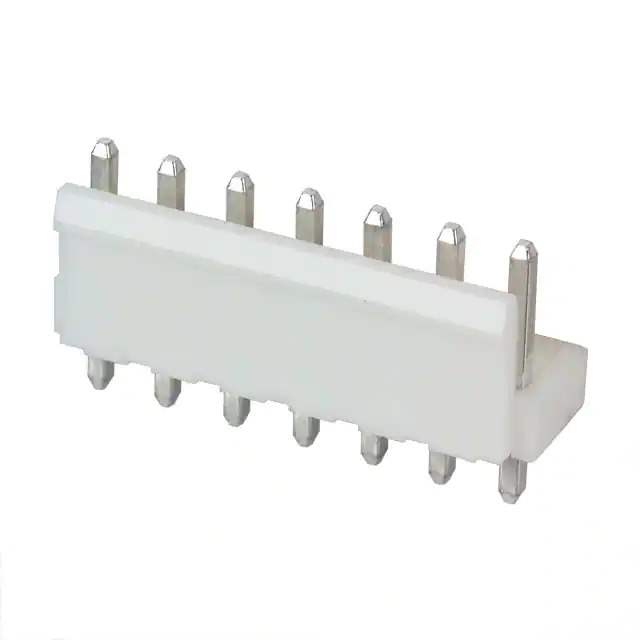

B7P-VH

Name: B7P-VH
Brand: JST Sales America Inc.
SKU: 863180
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B7P-VH
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 7POS 3.96MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.146" (3.70mm)
Overall Contact Length	0.575" (14.60mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Mated Stacking Heights	16.5mm
Standard Package	250 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	863180-B7P-VH
Ultra Librarian 3D Model	Ultra Librarian B7P-VH CAD Model

Alternative Products

Description

The 863180-B7P-VH is a 7-position rectangular connector header from JST Sales America Inc.

Manufacturer: JST Sales America Inc.
MPN: 863180-B7P-VH
Series: VH
Gender: Male
Number of Positions: 7
Number of Rows: 1
All Positions Loaded: Yes
Locking Ramp: Yes
Voltage Rating: 250V
Contact Material: Brass
Mated Stacking Height: 16.5mm
Package: Standard
Quantity per Package: 250
Insulation Material: Polyamide (PA66), Nylon 6/6
Mounting Style: Board-to-Cable/Wire
Mating Pitch: 0.156 inches (3.96mm)
Product Status: Obsolete
