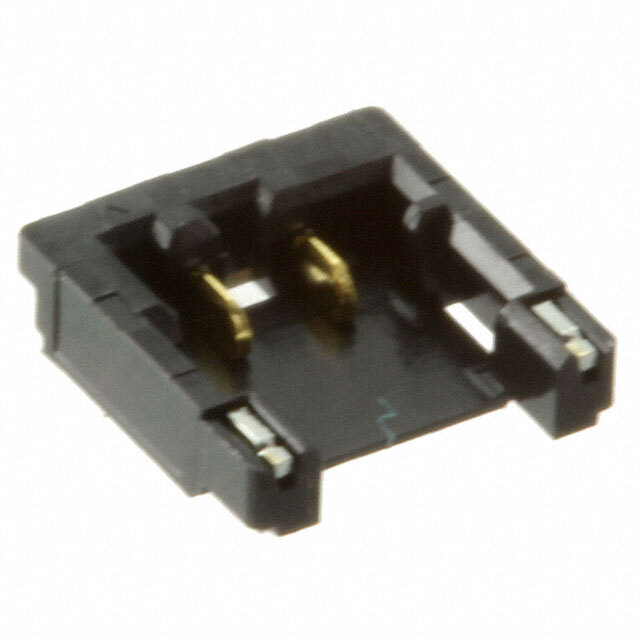

BM02B-ACHLKS-GAN-ETF

Part No BM02B-ACHLKS-GAN-ETF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Connector Header Surface Mount, Right Angle 2 position 0.047" (1.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr JST Sales America Inc.
Series ACHL
Packaging Reel - TR
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.047" (1.20mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.047" (1.20mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 50V
Base Product Number BM02B-AC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1477700-BM02B-ACHLKS-GAN-ETF
Ultra Librarian 3D Model Ultra Librarian BM02B-ACHLKS-GAN-ETF CAD Model

Description

BM02B-ACHLKS-GAN-ETF from JST Sales America Inc. is a rectangular connector intended for engineers building compact wire-to-board or board-level interconnect solutions where dependable signal or power routing is important. Parts in this category are commonly selected for consumer electronics, industrial control assemblies, compact embedded systems, and other equipment that needs organized, repeatable cable termination in limited space. JST components are often specified when design teams want a recognized connector brand with broad industry familiarity and support in production environments. For sourcing and design planning, this part should be treated carefully because the current lifecycle status is unknown based on the available input. That means purchasing teams and hardware engineers should confirm availability, lead time, and long-term continuity directly through official manufacturer resources or authorized distribution before locking it into a new design. RoHS compliance information is also not available here, so compliance-sensitive projects should verify the latest datasheet, declaration, or manufacturer statement before release.
