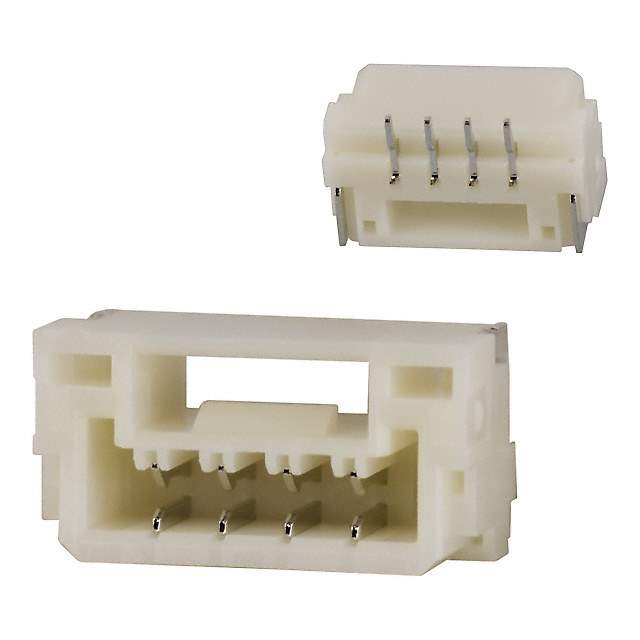

Same model may have multiple batches, images only for reference.

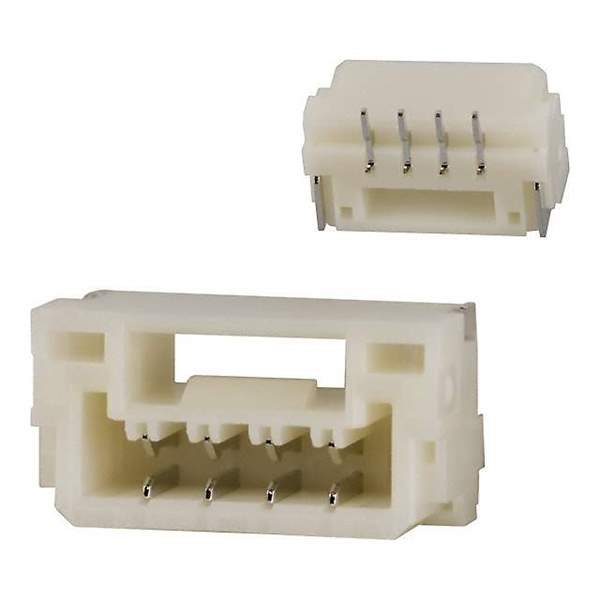

BM04B-GHS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM04B-GHS-TBT(LF)(SN)

Part No BM04B-GHS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description Connector Header, GH Series, 4 Position, 1.25mm, 50V, Surface Mount, Locking Ramp, Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Contact Material Bronze, Tin
Contact Plating Tin
Current Rating 1 A
Gender Male
Height 4.05 mm
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Straight
Packaging Cut Tape
Pitch 1.25 mm
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536694040
Termination Crimp
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Wire/Cable Gauge 26 AWG
Win Source Part Number 1049448-BM04B-GHS-TBT(LF)(SN)
Categories Circular Connectors - Housings
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian BM04B-GHS-TBT(LF)(SN) CAD Model

Description

The 1049448-BM04B-GHS-TBT(LF)(SN) is a 4-position male connector housing made of nylon material manufactured by JST Sales America Inc.

  • Positions: 4
  • Housing Material: Nylon
  • Pitch: 1.25 mm
  • Orientation: Straight
  • Voltage Rating: 50 V
  • Current Rating: 1 A
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Termination: SMD/SMT Crimp
  • Housing Color: Natural
  • Height: 4.05 mm
  • Category: Circular Connectors - Housings
  • Lead-Free: Yes
  • RoHS Compliant: Yes
