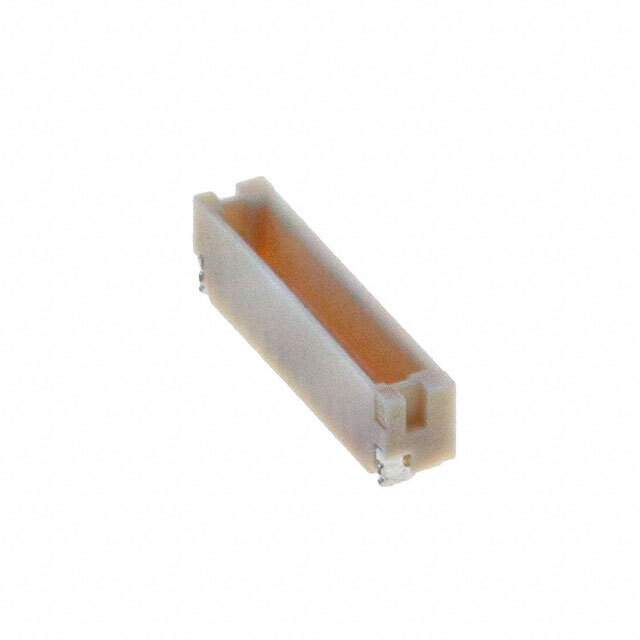

BM10B-SURS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM10B-SURS-TF(LF)(SN)

Part No BM10B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 0.8MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.80mm
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.106" (2.70mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.2A, 0.5A
Voltage Rating 30V
Mated Stacking Heights 3.95mm
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800849-BM10B-SURS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM10B-SURS-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. BM10B-SURS-TF(LF)(SN) is a header connector from JST Sales America Inc..

  • Connector Type: Header
  • Style: Shrouded - 4 Wall, Board to Cable/Wire
  • Pitch-Mating: 0.80mm
  • Termination Type: Solder
  • Voltage Rating: 30V
  • Current Rating: 0.2A, 0.5A
  • Insulation Color: Natural
  • Halogen Free: Yes
  • Supply and Demand Status: Sufficient
