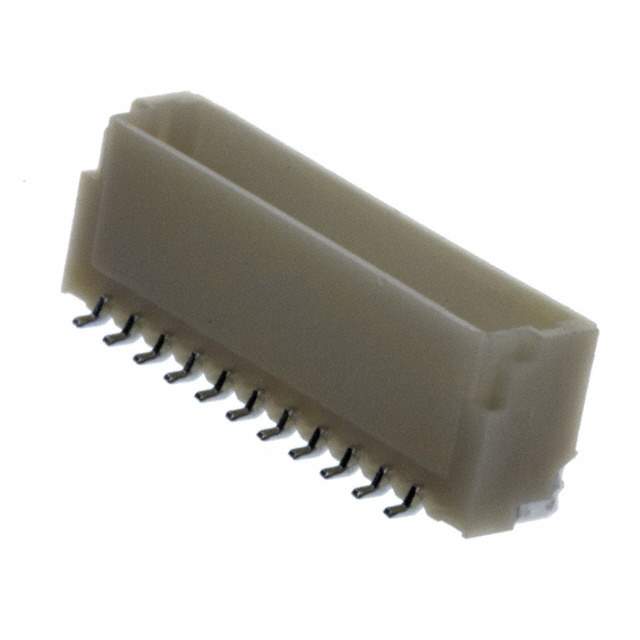

BM11B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM11B-SRSS-TB(LF)(SN)

Part No BM11B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 11POS TOP 1MM TIN / Conn Shrouded Header HDR 11 POS 1mm Solder ST SMD T/R
Datasheet
BM11B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series SR
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 11
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 770249-BM11B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Family Name SH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian BM11B-SRSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 770249-BM11B-SRSS-TB(LF)(SN) is a medium popularity electronic component with a balanced supply and demand status.

  • Product Type: Header connector
  • Positions: 11
  • Contact Type: Male pin
  • Style: Board to cable/wire
  • Pitch: 0.039 inches
  • Shroud: 4 wall
  • Fastening Type: Push-pull
  • Voltage Rating: 50V
  • Current Rating: 0.7A
  • Insulation Material: Polyamide (PA), nylon
  • Flammability Rating: UL94 V-0
  • Contact Finish: Tin
  • Estimated EOL Date: 2025
