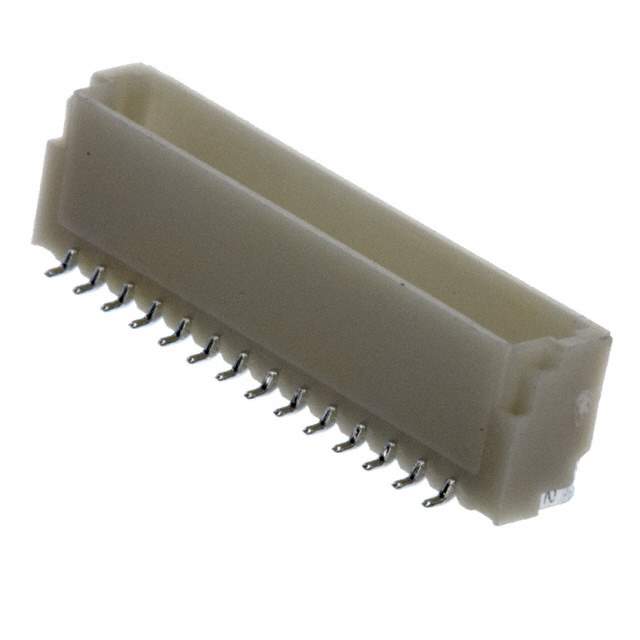

BM14B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM14B-SRSS-TB(LF)(SN)

Part No BM14B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167"
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807758-BM14B-SRSS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM14B-SRSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 807758-BM14B-SRSS-TB(LF)(SN) header is a 14-position male pin connector.

  • Fastening Type: Push-Pull
  • Features: Shrouded 4-wall, Solder Retention
  • Contact Material: Copper Alloy with Tin Plating
  • Voltage Rating: 50V
  • Pitch: 0.039 inches
  • Mated Stacking Height: 4.9mm
  • Insulation Material: Polyamide (PA) or Nylon
  • Applications: Board to Cable/Wire
  • Temperature Range: -25°C to 85°C
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (unlimited)
  • Current Rating: 0.7A
