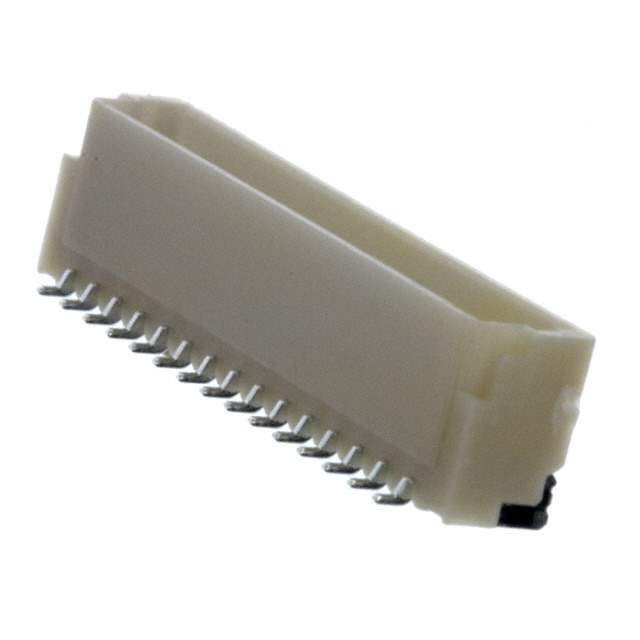

BM15B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM15B-SRSS-TB(LF)(SN)

Part No BM15B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 15POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 15
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167"
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809217-BM15B-SRSS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM15B-SRSS-TB(LF)(SN) CAD Model

Description

This connector is a header from JST Sales America Inc.

  • Positions: 15
  • Pitch: 0.039" (1.00mm)
  • Design: Shrouded 4-wall
  • Contact Type: Male Pin
  • Termination: Solder
  • Contact Finish (Mating): Tin
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Current Rating: 0.7A
  • Mounting Style: SMD
  • Popularity: Medium
  • Supply and Demand Status: Limited
