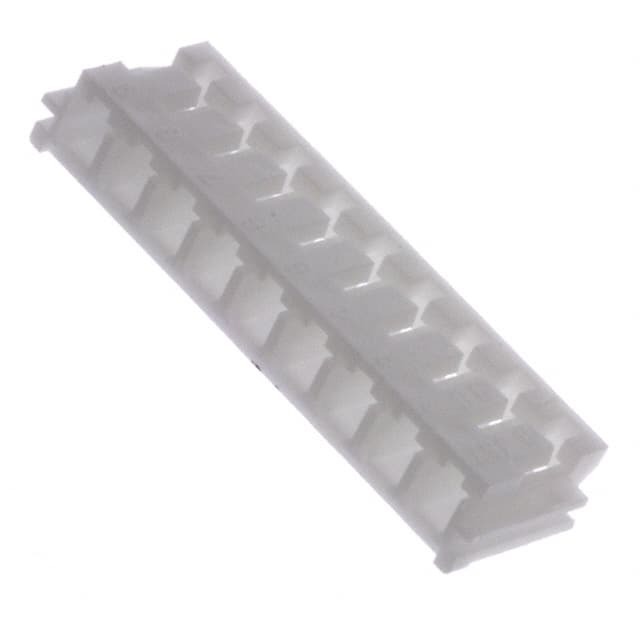

Same model may have multiple batches, images only for reference.

EHR-9

Name: EHR-9
Brand: JST Sales America Inc.
SKU: 1365396
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EHR-9
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 9POS 2.50MM / 9 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	EH
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	9
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	-
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	EHR
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365396-EHR-9
Ultra Librarian 3D Model	Ultra Librarian EHR-9 CAD Model

Alternative Products

Description

The 1365396-EHR-9 is a rectangular connector housing from JST Sales America Inc.

Series: EH series
Package Type: Bulk
Type: Receptacle
Contact Termination: Crimp
Positions: 9
Rows: 1
Pitch: 0.098" (2.50mm)
Color: Natural
Mounting: Free hanging (in-line)
Temperature Range: -25°C to 85°C
MSL: 1 (Unlimited shelf life)
Note: Contacts are not included
HTSUS Code: 8538.90.6000
ECCN: EAR99
