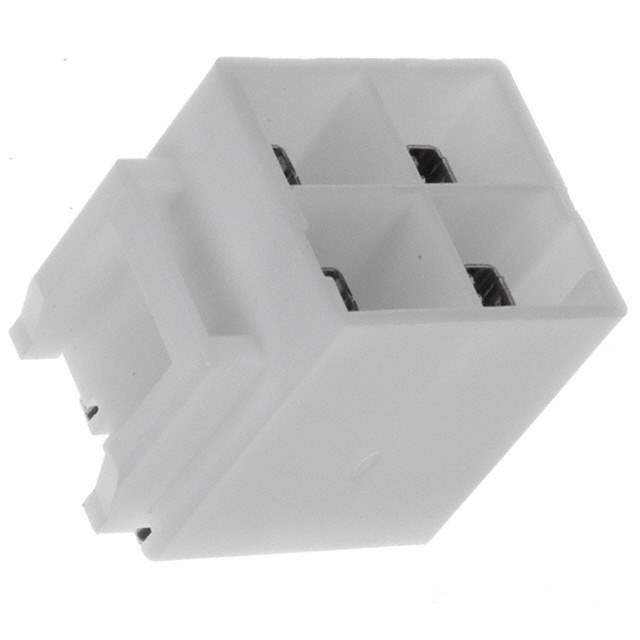

B04P-VL Real Image
Same model may have multiple batches, images only for reference.

B04P-VL

Part No B04P-VL
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 6.2MM / Connector Header Through Hole 4 position 0.244" (6.20mm)
Datasheet
B04P-VL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.244" (6.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.326" (8.28mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.646" (16.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 90°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 20A
Voltage Rating 600V
Mated Stacking Heights 29.2mm
Base Product Number B04P
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number B04PVL,455-2363
Standard Package 100
Win Source Part Number 1332747-B04P-VL
Ultra Librarian 3D Model Ultra Librarian B04P-VL CAD Model

Description

The B04P-VL is a male pin header connector from JST Sales America Inc.

  • Positions Loaded: 4
  • Rows: 2
  • Application: Board-to-Cable/Wire
  • Pitch: 0.244 inches (6.20mm)
  • Voltage Rating: 600V
  • Current Rating: 20A
  • Fastening Type: Latch Holder
  • Mounting: Through Hole
  • Contact Material: Copper Alloy
  • Contact Finish (Mating & Post): Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • RoHS Compliant: Yes
  • Operating Temperature: -25°C to 90°C
  • Packaging: Bulk
  • Standard Package: 100
