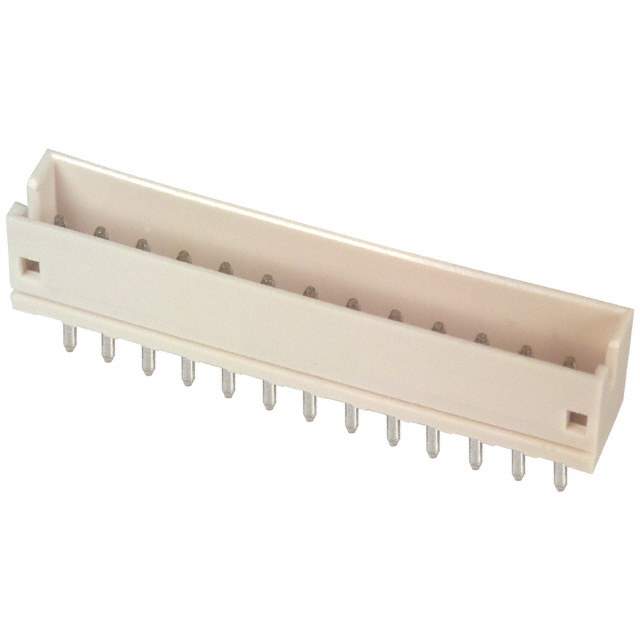

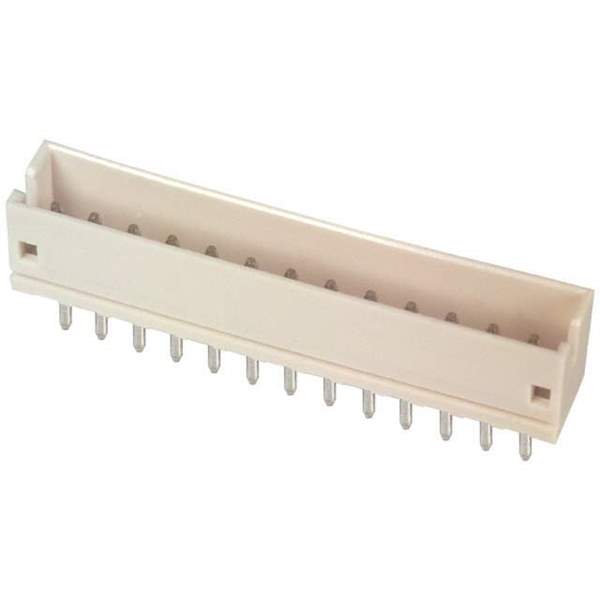

Same model may have multiple batches, images only for reference.

B13B-ZR(LF)(SN)

Name: B13B-ZR(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293239
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B13B-ZR(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	ZH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.059" (1.50mm)
Number of Positions	13
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.094" (2.40mm)
Contact Length - Post	0.106" (2.69mm)
Overall Contact Length	0.256" (6.50mm)
Insulation Height	0.177" (4.50mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Mated Stacking Heights	5.6mm
Base Product Number	B13B-ZR
Other Names	B13BZRLFSN,455-1668
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293239-B13B-ZR(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B13B-ZR(LF)(SN) CAD Model

Alternative Products

Description

The 1293239-B13B-ZR(LF)(SN) is a 13-position male pin header connector from JST Sales America Inc.

Product Name: 1293239-B13B-ZR(LF)(SN)
Manufacturer: JST Sales America Inc.
Series: ZH
Positions: 13
Applications: Board to cable/wire
Fastening Type: Detent Lock
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 50V
Current Rating: 1A
Mounting: Through-Hole
Shrouding: 4-wall design
Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
Insulation Color: Natural
Temperature Range: -25°C to 85°C
Contact Length (Mating): 0.094" (2.40mm)
Contact Length (Post): 0.106" (2.69mm)
Packaging: Bulk
Standard Package: 500
