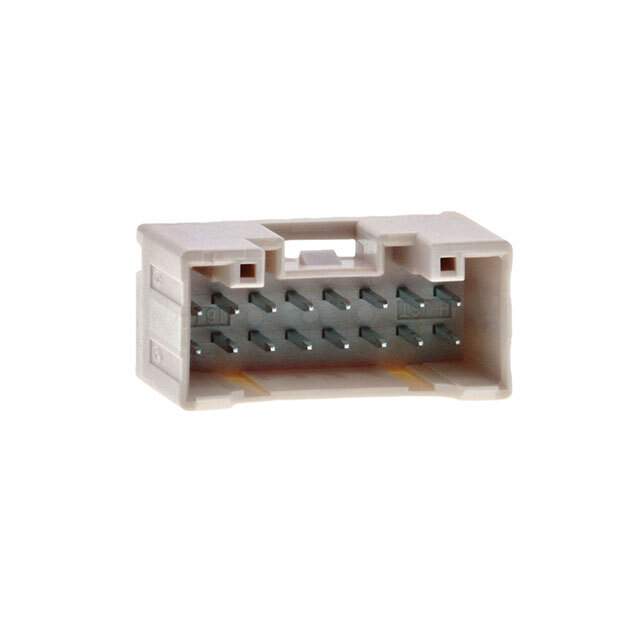

B16B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B16B-PUDSS-1(LF)(SN)

Part No B16B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11mm
Base Product Number B16B-PUD
Other Names B16B-PUDSS-1LFSN,455-2503,B16BPUDSS1LFSN,B(16)B-PUDSS-1(LF)(SN)
Standard Package 1,760
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293274-B16B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B16B-PUDSS-1(LF)(SN) CAD Model

Description

The PUD series header connector is a male pin connector with 16 positions loaded on 2 rows.

  • Series: PUD
  • Positions: 16
  • Rows: 2
  • Positions Loaded: All
  • Features: Board Guide, Latch Holder
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Mated Stacking Heights: 11mm
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
  • Shrouding: Shrouded with 4 Walls
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Finish (Mating and Post): Tin
  • Current Rating: 3A
  • Temperature Range: -25°C to 85°C
  • Style: Board-to-Cable/Wire
  • Package: Tray
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99
