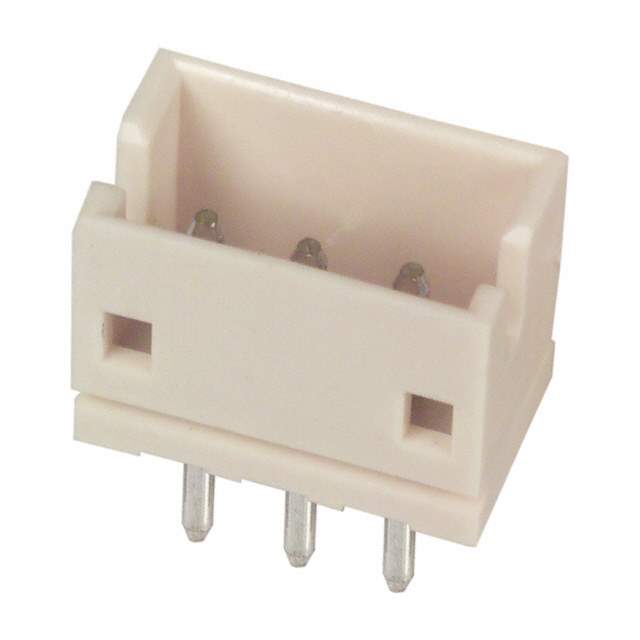

B3B-ZR Real Image
Same model may have multiple batches, images only for reference.

B3B-ZR

Part No B3B-ZR
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 1.5MM / Connector Header Through Hole 3 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Overall Contact Length 0.256" (6.50mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 5.6mm
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-1235
Standard Package 2,000
Win Source Part Number 1332120-B3B-ZR
Ultra Librarian 3D Model Ultra Librarian B3B-ZR CAD Model

Description

JST Sales America Inc. has manufactured the 1332120-B3B-ZR, which is a male pin header connector.

  • Packaging: bulk
  • Standard Package: 2000
  • Number of Positions: 3
  • Voltage Rating: 50V
  • Fastening Type: detent lock
  • Shrouding: shrouded-4 wall
  • Contact Material: brass
  • Insulation Material: polyamide (PA66), nylon 6/6, glass-filled
  • Pitch-Mating: 0.059” (1.50mm)
  • Temperature Range: -25°C ~ 85°C
