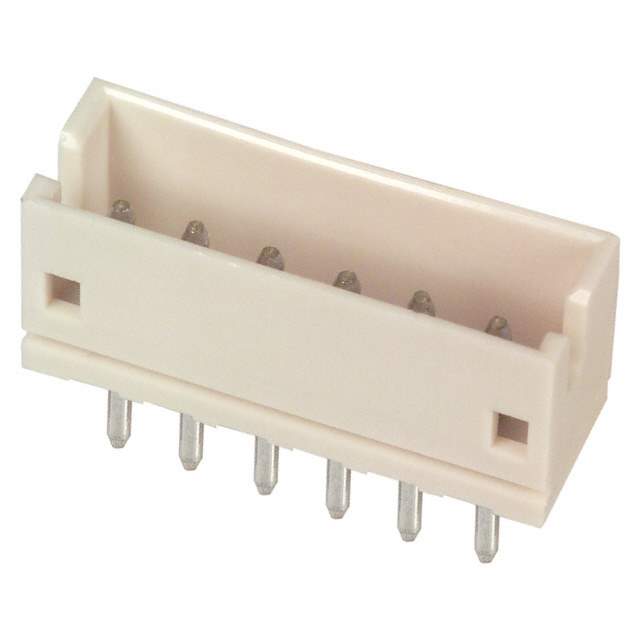

B6B-ZR Real Image
Same model may have multiple batches, images only for reference.

B6B-ZR

Part No B6B-ZR
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 1.5MM / Connector Header Through Hole 6 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Overall Contact Length 0.256" (6.50mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 5.6mm
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-1240
Standard Package 2,000
Win Source Part Number 1332102-B6B-ZR
Ultra Librarian 3D Model Ultra Librarian B6B-ZR CAD Model

Description

The JST Sales America Inc. 1332102-B6B-ZR is a male pin header connector with six positions and a detent lock fastening type.

  • Pitch: 0.059 inches (1.50mm)
  • Mating Cycle: -
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Housing Material: Polyamide (PA66), Nylon 6/6, Glass-Filled
  • Insulation Color: Natural
  • Mounting: Through-Hole
  • Style: Board to Cable/Wire
  • Temperature Range: -25°C to 85°C
  • Status: Obsolete
  • RoHS Compliance: Non-Compliant
