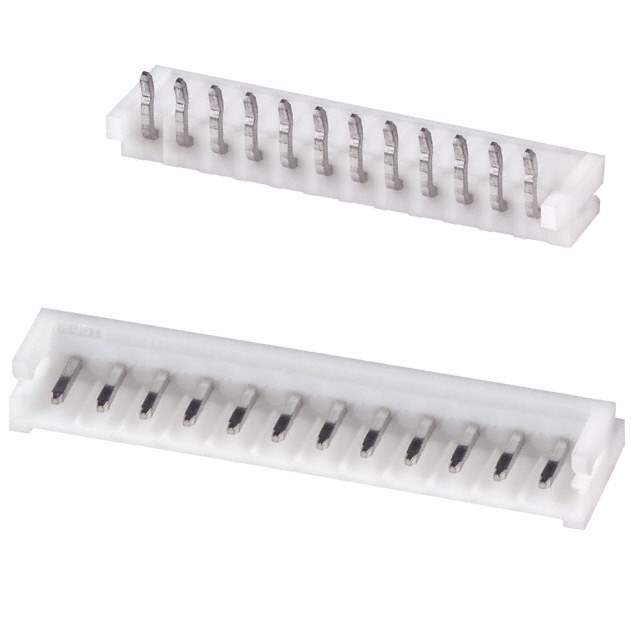

S12B-EH(LF)(SN)

Name: S12B-EH(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293308
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S12B-EH(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	EH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	12
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Latch Lock
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.165" (4.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S12B-EH
Other Names	S12BEHLFSN,455-1635
Standard Package	250
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293308-S12B-EH(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S12B-EH(LF)(SN) CAD Model

Description

The S12B-EH(LF)(SN) is a 12-position header connector manufactured by JST Sales America Inc.

Manufacturer: JST Sales America Inc.
Series: EH
Application: Board-to-cable/wire
Contact Type: Male pins
Termination: Press-fit and solder
Fastening Type: Latch lock
Shrouding: 3 walls
Voltage Rating: 250V
Current Rating: 3A
Contact Material: Brass
Contact Finish: Tin
Flammability Rating: UL94 V-0
Temperature Range: -25°C to 85°C
Pitch: 0.098" (2.50mm)
Contact Length - Mating: 0.157" (4.00mm)
Contact Length - Post: 0.126" (3.20mm)
Height: 0.165" H (4.20mm)
Packaging: Bulk
Standard Package: 250 pieces
