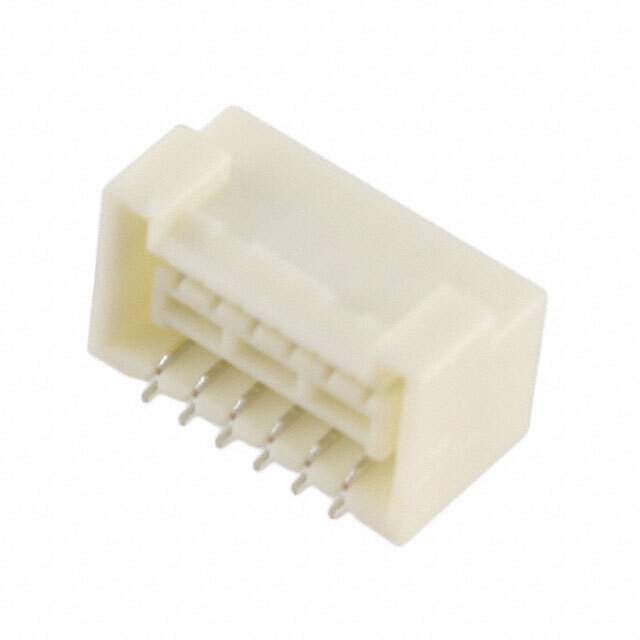

SM12B-ZPDSS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM12B-ZPDSS-TF(LF)(SN)

Part No SM12B-ZPDSS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 12POS 1.5MM / Connector Header Surface Mount, Right Angle 12 position 0.059" (1.50mm)
Datasheet
SM12B-ZPDSS-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZPD
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 12
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.309" (7.85mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA) , Nylon
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number SM12B-ZP
Standard Package 700
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337826-SM12B-ZPDSS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM12B-ZPDSS-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. ZPD Series 12 position header male pin connector is a rectangular connector that is part of the category of connectors.

  • Connector Type: Header
  • Contact Gender: Male Pin
  • Shroud: Outer Shroud Contact
  • Application: Board to Cable/Wire
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Packaging: Tape and Reel
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA) and Nylon
  • Insulation Color: Natural
  • Pitch Mating: 0.059 inches (1.50mm)
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Shrouded: 4 Wall
  • Contact Shape: Rectangular
