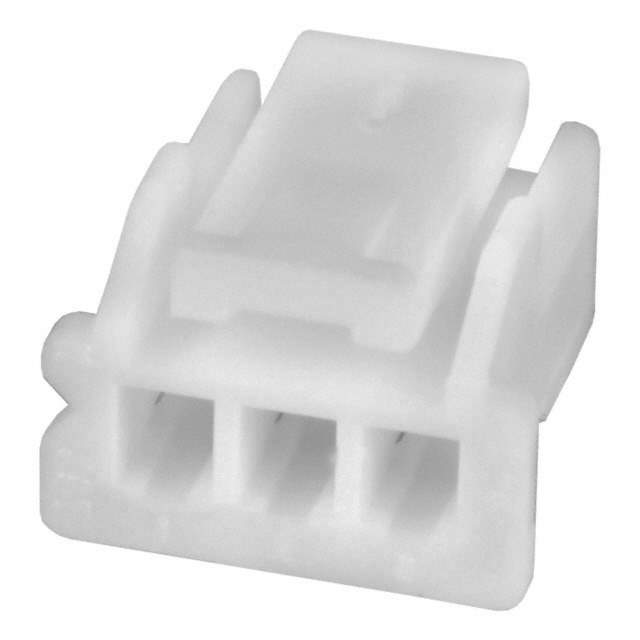

PAP-03V-S Real Image
Same model may have multiple batches, images only for reference.

PAP-03V-S

Part No PAP-03V-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HOUSING PA 3POS 2MM WHITE / Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount White Bag
Datasheet
PAP-03V-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PA
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Win Source Part Number 791373-PAP-03V-S
Popularity Medium
Supply and Demand Status Balance
Family Name PAP
Introduction Date December 04, 2012
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PAP-03V-S CAD Model

Description

The 791373-PAP-03V-S is a limited supply connector manufactured by JST Sales America Inc.. The product belongs to the PAP series, and is suitable for use in various electronic devices. It is a receptacle connector with a 3-position design and a pitch of 0.079 inches. The connector is designed for free hanging (in-line) mounting and features a latch lock fastening type. The connector is made of polyamide (PA66) and nylon 6/6 insulation material, and has an estimated EOL date of 2029. Additional information about this product is not available.

  • Positions: 3
  • Pitch: 0.079 inches
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Latch Lock
  • Insulation Material: Polyamide (PA66), Nylon 6/6
