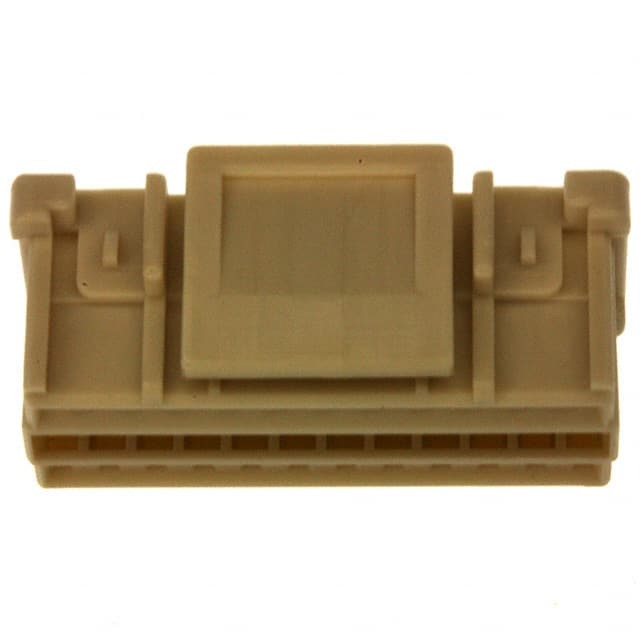

Same model may have multiple batches, images only for reference.
PNDP-24V-Z JST Sales America Inc.
Same model may have multiple batches, images only for reference.

PNDP-24V-Z

Part No PNDP-24V-Z
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 24POS 2.00MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series PND
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 24
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.197" (5.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Ivory
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number PNDP-24V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365946-PNDP-24V-Z
Ultra Librarian 3D Model Ultra Librarian PNDP-24V-Z CAD Model

Description

The PNDP-24V-Z is a rectangular connector housing manufactured by JST Sales America Inc.

  • Manufacturer: JST Sales America Inc.
  • Product: PNDP-24V-Z
  • Connector Type: Receptacle
  • Positions: 24
  • Rows: 2
  • Mounting: Free Hanging (In-Line)
  • Locking: Latch Lock
  • Termination: Crimp
  • Contact Type: Female Socket
  • Pitch: 0.079 inches (2.00mm)
  • Row Spacing: 0.197 inches (5.00mm)
  • Color: Ivory
  • Series: PND
  • Temperature Range: -25°C to 85°C
  • Contacts Included: No
